Unshielded Signal/Control Cables

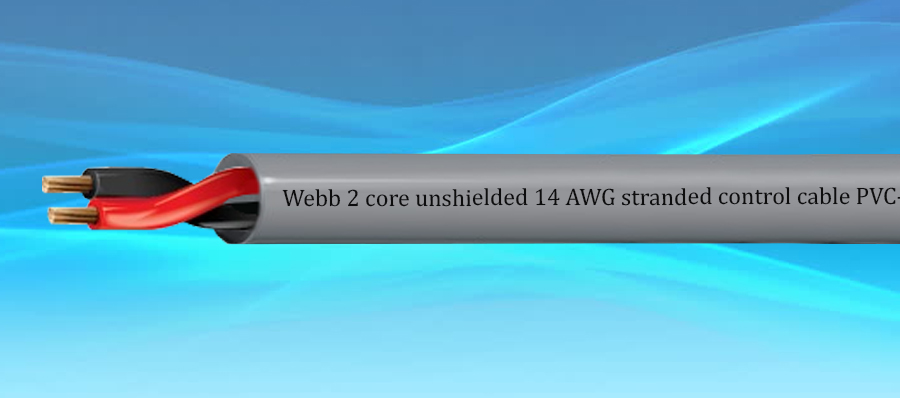

Unshielded control cable


Data Sheets



Test Report

Webb signal/control cables are multi-conductor cables used in automation and instrumentation applications. They are designed to be flexible to enable hassle-free routing and cabling at any location. The inner structure consists of electrolytic stranded copper conductors insulated in a polypropylene compound making the cable fire resistant and flexible. The cable is further covered with a PVC sheath.


Specifications

  • Conductor: stranded electrolytic copper
  • Insulation: polypropylene compound
  • Stranding: in layers
    • 14AWG: 19 strands x 26AWG
    • 16AWG: 19 strands x 29AWG
    • 18AWG: 7 strands x 26AWG
    • 22AWG: 7 strands x 30AWG
    • 24AWG: 7 strands x 32AWG
  • Outer sheath: PVC compound
  • Outer sheath colour: Grey
  • Operating voltage (U₀/U): 300 V
  • Bending radius: Fixed - 7.5xD; Constant motion - 15xD
  • Operating temperature: -30 °C to +70 °C
  • Conductor resistance (Ω/km) ±3:
    • 14 AWG - 08.90
    • 16 AWG – 13.78
    • 18 AWG – 21.32
    • 22 AWG – 53.15
  • Mutual capacitance(±%10):
    • 2x14 AWG (nF/km): 120
    • 2x16 AWG (pF/m): 75.463
    • 4x22 AWG (pF/m): 55.777
    • 6x18 AWG (pF/m): 78.744
  • Outer diameters in mm (±%10):
    • 2x14 AWG – 5.80
    • 2x16 AWG – 4.85
    • 4x22 AWG – 3.80
    • 6x18 AWG – 5.80
  • Core colours:
    • 2x14 AWG –Black, red
    • 2x16 AWG –Black, red
    • 4x22 AWG –Black, red, white, green
    • 6x18 AWG –Black, red, white, green, brown, blue

Inner Structure




Signal/Control Cable Part Number Key

Part Number: T.04.CC._ _._ _._._

T.04.CC.Cores.Shield.Conductor Thickness.Type.Sheath.Colour

Please add the codes from the tables below in the above format to derive your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
