Rack Mountable Fire Systems

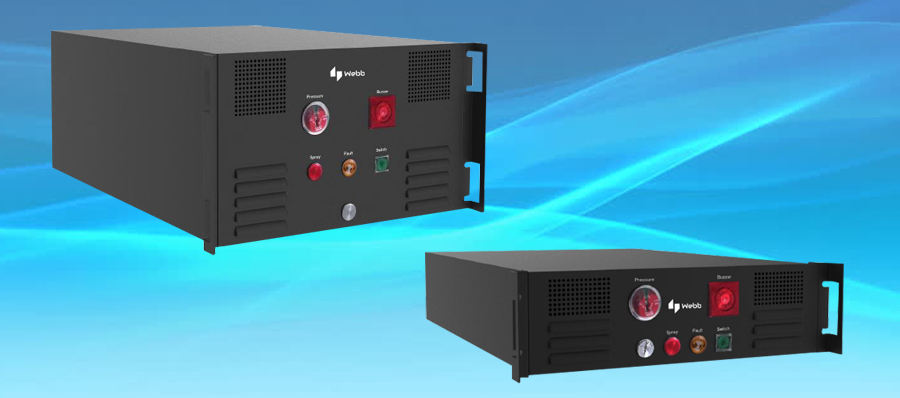

Webb’s rack mountable fire extinguishers are specialized fire suppression systems designed to safeguard critical IT components within server cabinets. They are equipped with FM200/Novec-1230 gas, releasing valves, activation sensors and controllers, making them the ideal choice for protecting self-contained data center systems from fire damage.


Technical specifications

  • Available in three models: T.MDC.FM.FE.1.3, T.MDC.FM.FE.4.6, T.MDC.FM.FE.8.6
  • Main power: AC220V 50/60Hz
  • Standby power: 1.5W
  • Storage Pressure: 1.6MPa (1.3MPa to 2.5MPa)
  • Battery time: 8 hours
  • Temperature threshold: 62°C ± 8°C
  • Extinguishing delay: 30s
  • Gas type: FM200/Novec1230
  • Gas weight: 1kg (T.MDC.FM.FE.1.3), 4kg (T.MDC.FM.FE.4.6), 8kg (T.MDC.FM.FE.8.6)
  • Suggested protection range: 1.59m3 (T.MDC.FM.FE.1.3), 6.3m3 (T.MDC.FM.FE.4.6), 12.6m3 (T.MDC.FM.FE.8.6)
  • Working mode: Automatic
  • Communication ports: 3 DO: Power failure, Fire alarm, and Gas spray
  • Dimensions:
    • T.MDC.FM.FE.1.3: 435mm x 3U x 650mm (w x h x d)
    • T.MDC.FM.FE.4.6: 435mm x 6U x 650mm (w x h x d)
    • T.MDC.FM.FE.8.6: 435mm x 6U x 650mm (w x h x d)


*Specifications are subject to change without notice based on technical recommendations and related product enhancements
