Data Center Infrastructure Management And
Monitoring Solutions

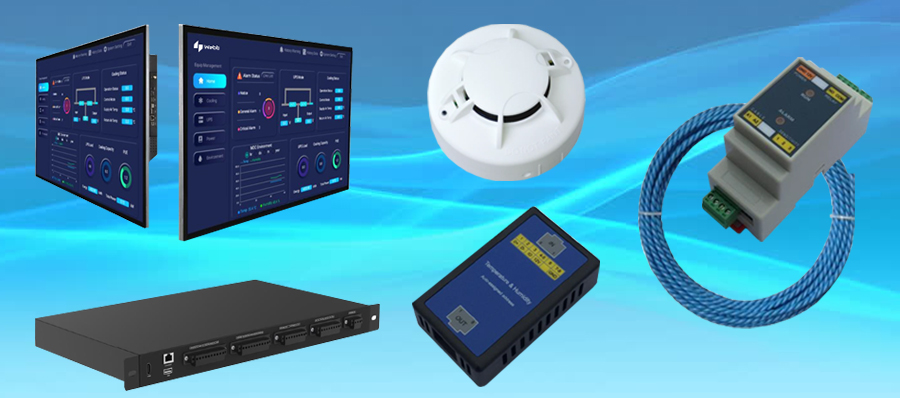

Comprehensive Monitoring Solution

Leveraging cutting-edge sensors and sophisticated data acquisition technology, our solutions offer unparalleled real-time insights into critical aspects of data center infrastructure management and environmental conditions. With a versatile array of sensors, from monitoring cooling and power usage to tracking temperature, humidity, and water leaks and smoke detection, our systems deliver precise and instantaneous data you can rely on. ensuring rapid responses to emerging issues through instant user alerts.


A standout feature of Webb's infrastructure management and monitoring solution is its seamless integration with building management systems (BMS), facilitating remote management and monitoring. This integration optimises operations, providing centralised control over data center infrastructure from any location, at any time.


Network Access Controller
  • One host - supporting data collection, data visualisation, and logical actions
  • Provides full information on power, cooling, temperature, humidity, door status, leaks, and more
  • Compatibility with industry-standard protocols including Modbus-RTU, Modbus-TCP, and SNMP
  • Seamless integration with centralised BMS systems for efficient data and alarm reporting via SNMP or Modbus-TCP
  • Multiple ways to view and control: local display or web interface
  • Alarm notification by email, SMS or phone call
  • Doors and top panels automatically open during fire events
  • Cooling system automatically shuts down during fire events

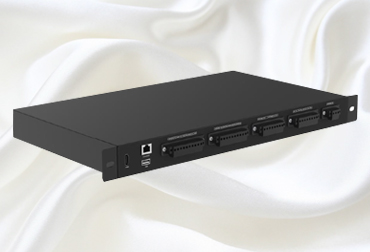

Rack Mount Monitoring Host

Webb’s rack/wall mounted monitoring host is a compact and efficient solution for real-time monitoring and management of critical infrastructure in your data centre. Featuring a complete suite of monitoring capabilities such as temperature, humidity, power consumption, and more, this host delivers comprehensive insights into the health and performance of your data center infrastructure.


Features

  • Part number: T.MDC.EM.MHR.99
  • 1U height, supports multiple types of equipment, such as UPS, cooling, smoke, water, sensors, and more
  • Supports multiple protocol types from equipment, such as Modbus RTU, Modbus TCP, and SNMP
  • Can be integrated into central BMS by SNMP or Modbus TCP
  • Built-in HDMI port to connect to an external display
  • Seamless integration into video and access control systems

Technical specifications

  • Input voltage: 12VDC~24VDC
  • Input current: 3.0A
  • Display panel: External touch display
  • Web portal: Built in
  • Monitoring Ports for BMS: Modbus TCP, SNMP
  • I/O Ports:
    • RS232: 1 x RS232
    • RS485: 5 x RS485
    • Digital input: 6 x DI
    • Digital output: 2 x DO
    • HDMI: 1 x HDMI
    • Network: 1 x 10/100M
    • USB: 1 x USB2.0
  • Operating temperature: 40°C to 85°C
  • Operating humidity: 5%~95%RH, non condensing
  • Dimensions: 481 x 244 x 44.5mm
  • Net weight: 3.4kg
Rack Mount Monitoring Host

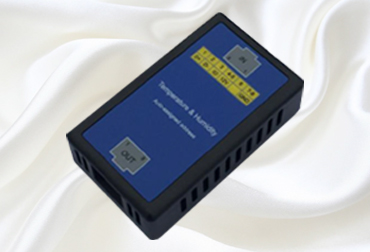

Temperature and Humidity Sensor

Webb’s Temperature and Humidity Sensor is a precision-engineered solution, designed for accurate monitoring in critical environments such as data centres, smart cabinets, IDC rooms, and laboratories. This sensor utilizes an effective semiconductor sensor design, ensuring high precision and reliability. Its innovative self-calibration function enhances accuracy over time, providing consistent and dependable monitoring results.


Features

  • Part number: T.MDC.EM.S.TH.R4
  • Highly accurate, self-correcting, and consistent monitoring
  • Facilitates RJ45 connection for automatic address allocation
  • Can be easily installed with magnets or wall mounts
  • RS485 interface with Modbus protocol for remote monitoring

Technical specifications

  • Input power: 10 - 15VDC, rated 12VDC
  • Temperature measuring range: -20 °C to 80°C with <±0.3℃ accuracy, tested at 25℃
  • Humidity measuring range: 0% ~ 100%RH with <±0.3% RH accuracy, tested at 25℃
  • Physical interface: RS485
  • Tandem nodes: Recommended 64 nodes (Max. 256 nodes)
  • Transmission distance: 1200m(connect with STP network cable)
  • Address range: 1~254, through RS485 setting, can realize automatic allocation
  • Communication protocol: Modbus -RTU
  • Baud rate: default setting 9600bps. 2400/4800/9600 can be selected
  • Operating temperature: -20°C to 80°C
  • Operating humidity: 0%~100% RH
  • Dimensions: 80 x 48 x 23mm
  • Net weight: 0.05kg

Temperature and Humidity Sensor

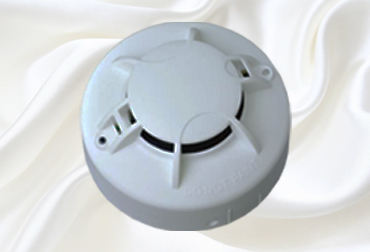

Smoke of Fire Sensor

Webb’s Smoke Sensors are a reliable and efficient solution for detecting smoke in a variety of environments. It operates with two-wire connections, making it compatible with traditional alarm systems without requiring additional wiring. This simplifies installation and ensures seamless integration into existing setups. During normal monitoring, the sensor emits a red light, indicating its operational status, while consuming minimal power. When smoke levels exceed the threshold, signalling an alarm state, the red light remains on, and the sensors current rises rapidly, providing a clear indication of the alarm condition.


Features

  • Part number: T.MDC.EM.S.SF
  • The detector features an automatic dust accumulation compensation function, which reduces the impact of dust on the detector's sensitivity
  • The alarm can easily be reset only by a momentary power interruption

Technical specifications

  • Input voltage: 9VDC~28VDC, Non polarized
  • Standby current: 60uA @ 24 VDC
  • Max. Alarm current: 30mA @ 24 VDC (LED on)
  • Adjustable sensitivity: 0.15~0.3dB/m
  • Operating temperature: 10°C~ 50°C
  • Operating humidity: 10%~93%RH, Non condensing
  • Dimensions: Φ103 x 55mm (installed in base)
  • Net weight: 0.155kg

Smoke of Fire Sensor

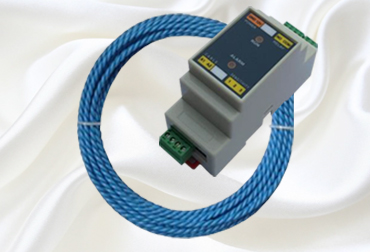

Positioning Leaking Sensor

Webb’s Leak Detection Sensor is an advanced solution designed to provide early detection of leaks in a variety of environments. Whether in data centres, laboratories, server rooms, or industrial facilities, our sensor offers reliable protection against water damage.


Features

  • Part number: T.MDC.EM.S.WDC.5
  • The controller provides DC/DC power isolation to prevent interference from power ground lines, ensuring high stability
  • The detection lines are flame-resistant, dustproof, and short-circuit-resistant, ensuring no false alarms

Detection controller technical specifications

  • Input voltage: 12VDC, 10 to 15VDC
  • Working current: ≤0.1A
  • Detection sensitivity: 8 levels of sensitivity can be set
  • Response time: <2s
  • Relay output: 1 way, contact DC30V 1A
  • Dimensions: 88 x 37 x 59mm
  • Net weight: 0.07kg

Detection cable technical specifications

  • Cable material: Imported conductive polymer and insulation polymer, flame retardant materials
  • Protection: Built in dustproof, anti short circuit protective net
  • Flame retardant grade: 94V-0
  • Detection medium: normal water, air conditioning water, fire water, rainwater, etc.
  • Sensitivity: <3cm water leakage line can be sensed
  • Response time: <1s
  • Installation method: Non position
  • Drying time: 15 seconds after the cable leaves the water, gently shake the cable water droplets automatically fall off
  • Cleaning method: Wipe off with a clean cloth
  • Life: 10 years
  • Operating temperature: 10°C~ 50°C
  • Operating humidity: 10%~90%RH
  • Dimensions: 5.5mm2
  • Cable length: 5m
  • Net weight: 0.35kg

Positioning Leaking Sensor

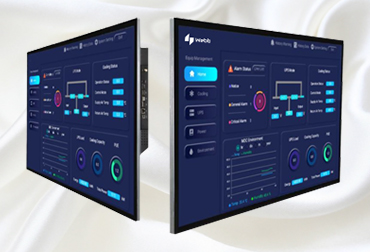

Industrial Touch Display Panel

Webb’s range of Industrial Touch Displays are available in 10-inch, 21-inch, and 43-inch sizes, designed specifically for use in data centres. These displays offer robust performance and reliable touch functionality, catering to the demanding requirements of modern data centre environments.


Features

  • Available in three models T.MDC.EM.DP.10, T.MDC.EM.DP.21, T.MDC.EM.DP.43
  • Suitable for 1U type host
  • 10 point capacitive touch and a lightning fast 5ms response time
  • Built to endure, featuring an aluminium alloy frame and a sheet metal rear shell for enhanced durability
  • Corrosion-resistant and boasting an IP65 waterproof surface, this display thrives in challenging environments

Technical specifications

Industrial touch display panel



Industrial touch display panel


*Specifications are subject to change without notice based on technical recommendations and related product enhancements
