Foil Shielded Signal/Control Cables

Webb signal/control cables are multi-conductor cables used in automation and instrumentation applications. They are designed to be flexible to enable hassle-free routing and cabling at any location. The inner structure consists of electrolytic stranded copper conductors insulated in a polypropylene compound. These are then wrapped in an aluminium screening to prevent electrical interference, and further covered with a PVC sheath.


Specifications

  • Conductor: stranded electrolytic copper
  • Stranding: in layers
    • 16AWG: 19 strands x 29AWG
    • 18AWG: 7 strands x 26AWG
    • 22AWG: 7 strands x 30AWG
    • 24AWG: 7 strands x 32AWG
  • Insulation: polypropylene compound
  • Screen: Aluminium foiled and PET tape
  • Tinned copper drain wire (7 strands x 0.20mm)
  • Outer sheath: PVC compound
  • Outer sheath colour: Grey
  • Operating voltage (U₀/U): 300 V
  • Bending radius: 10 x D
  • Operating temperature: -30 °C to +70 °C
  • Conductor resistance (Ω/km) ±3:
    • 16 AWG: 13.12
    • 18 AWG: 21.32
    • 22 AWG: 53.80
    • 24 AWG: 80.00
  • Mutual capacitance (nF/km) ±10:
    • 2x16 AWG - 190.3
    • 3x16 AWG - 190.3
    • 2x18 AWG - 173.89
    • 3x18 AWG - 118.12
    • 4x18 AWG - 88.587
    • 6x18 AWG - 88.587
    • 8x18 AWG - 88.587
    • 4x22 AWG - 73.823
    • 8x22 AWG - 131.24
    • 4x24 AWG - 120.05
    • 4x2x24 AWG - 120.08
  • Core colours:
    • 2x16 AWG - Black, red
    • 3x16 AWG - Black, red, white
    • 2x18 AWG - Black, red
    • 3x18 AWG - Black, red, white
    • 4x18 AWG - Black, red, white, green
    • 6x18 AWG - Black, red, white, green, brown, blue
    • 8x18 AWG - Black, red, white, green, brown, blue, orange, yellow
    • 4x22 AWG - Black, red, white, green
    • 8x22 AWG - Black, red, white, green, brown, blue, orange, yellow
    • 4x24 AWG- White, yellow, brown, green
    • 4x2x24 AWG- Black x red, black x white, black x green, black x blue

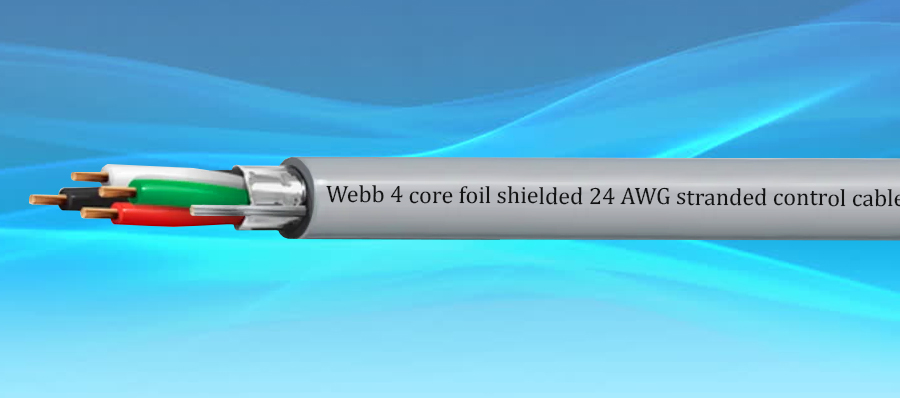

Inner Structure




Signal/Control Cable Part Number Key

Part Number: T.04.CC._ _._ _._._

T.04.CC.Cores.Shield.Conductor Thickness.Type.Sheath.Colour

Please add the codes from the tables below in the above format to derive your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
