Foiled & Braid Shielded Signal/Control Cables

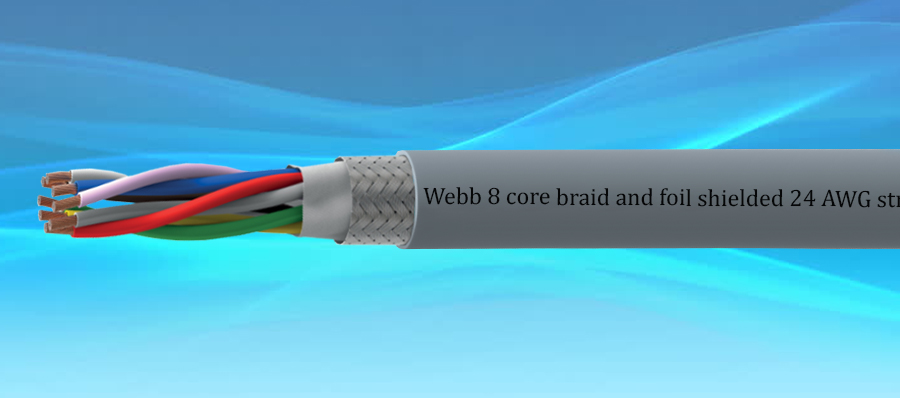

Foil and braid shielded control cable


Data Sheets



Test Report

Webb signal control cables are multi-conductor cables used in automation and instrumentation applications. They are designed to be flexible to enable hassle-free routing and cabling at any location. The inner structure consists of electrolytic stranded copper conductors insulated in a polypropylene compound making the cable fire resistant and flexible. These are then wrapped by an aluminium tape surrounded by tinned copper braiding for increased protection and strength. The cable is further covered with a PVC sheath.


Specifications

  • Conductor: stranded electrolytic copper
  • Insulation: polypropylene compound
  • Stranding: in layers
    • 14AWG: 19 strands x 26AWG
    • 16AWG: 19 strands x 29AWG
    • 18AWG: 7 strands x 26AWG
    • 22AWG: 7 strands x 30AWG
    • 24AWG: 7 strands x 32AWG
  • Tinned copper drain wire
  • Screen: Screen: Aluminium foiled, Tinned copper braid and PET tape
  • Outer sheath: PVC compound
  • Outer sheath colour: Grey
  • Operating voltage (U₀/U): 250V - 300V
  • Bending radius: 7.5 x D
  • Operating temperature: -30 °C to +70 °C
  • Conductor resistance (Ω/km):
    • 0.14mm² - 138
    • 0.22mm² - 88
    • 0.34mm² - 56
    • 0.5mm² - 39
    • 0.75mm² – 26
    • 1.0mm² – 19.5
    • 1.5mm² – 13.3
    • 2.5mm² – 7.98
  • Mutual capacity (nF/km):
    • 0.14mm² - 110
    • 0.22mm² - 110
    • 0.34mm² - 110
    • 0.5mm² - 120
    • 0.75mm² – 120
    • 1.0mm² – 130
    • 1.5mm² – 140
    • 2.5mm² – 150

Inner Structure




Signal/Control Cable Part Number Key

Part Number: T.04.CC._ _._ _._._

T.04.CC.Cores.Shield.Conductor Thickness.Type.Sheath.Colour

Please add the codes from the tables below in the above format to derive your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
