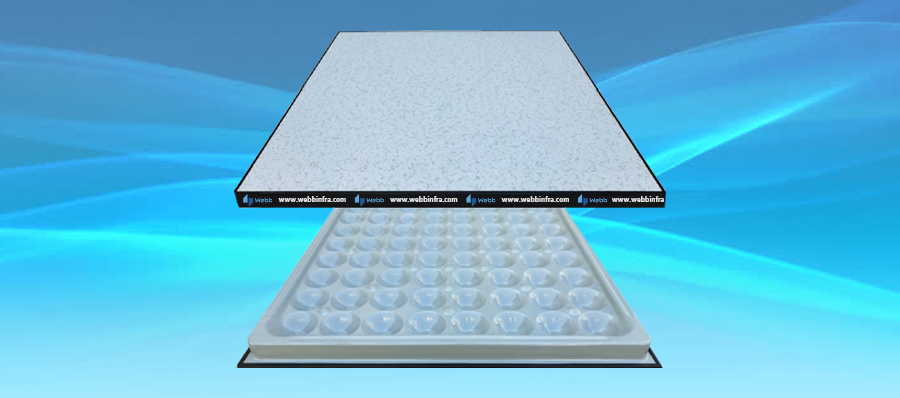

Anti-Static Steel Cement Raised Floor - HPL Finish

The Webb Anti-static Steel Cement Raised Floor with HPL Finish is designed for exceptional durability and stability, featuring a high-strength steel cement core. The top surface is coated with anti-static high-pressure laminate (HPL), providing effective resistance to electrostatic discharge. For added protection, the panels are equipped with anti-static conductive rubber trim on all four sides. The floor system is engineered to handle a variety of loads, including static, impact, rolling, and uniform loads, ensuring reliable performance in demanding environments. The system also includes zinc-galvanized pedestals and stringers for enhanced strength. With impressive load-bearing capacities and compliance with industry standards, this raised floor solution delivers reliable performance, safety, and electrostatic control for modern, mission-critical environments.


Technical specifications

  • Fire resistance: ASTM E84-14 - Class A
  • Panel core material: high-strength steel cement
  • Panel top surface: anti-static high-pressure laminate (HPL)
  • Panel edge protection: Anti-static conductive rubber trim on all four sides
  • Static concentrated load: CISCA, PSA MOB PF2 - 360kg/3.56kN (medium grade)
  • Ultimate load: 11.25kN
  • Impact load: 45kg
  • Rolling load: 2.94kN at 10 passes; 2.45kN at 10,000 passes
  • Uniform load: 17.78kN/m²
  • Axial load: 22.5kN
  • Dimensions: 600mm x 600mm x 35mm
  • Weight: 44-46kg/m²
  • Meets CISCA, PSA MOB PF2, and ASTM E84-14 standards

Inner Structure



Pedestal and Stringer





*Specifications are subject to change without notice based on technical recommendations and related product enhancements
