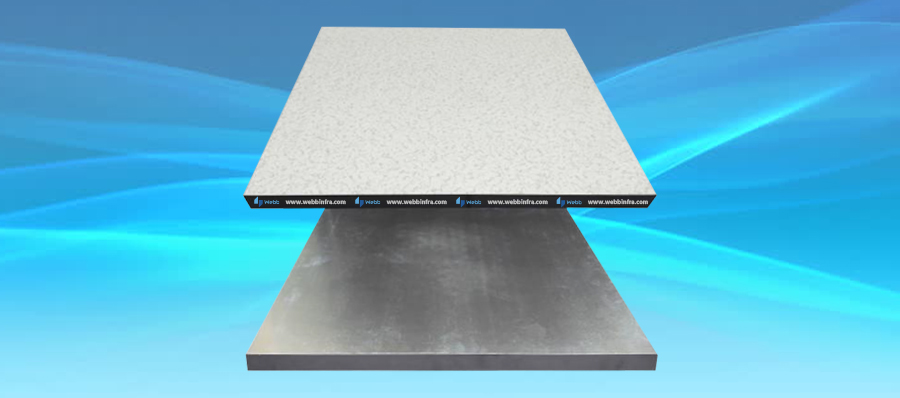

Anti-Static Calcium Sulphate Raised Floor - HPL Finish

The Webb Anti-static Calcium Sulphate Raised Floor with HPL Finish is a high-performance raised flooring solution designed for environments requiring superior durability, stability, and electrostatic control. Featuring a high-strength calcium sulphate core and a corrosion-resistant galvanized steel bottom, this system offers exceptional structural integrity and resilience. The anti-static HPL surface minimizes the risk of electrostatic discharge, making it ideal for sensitive environments such as data centers, server rooms, and other high-tech spaces. The system includes zinc-galvanized pedestals and stringers for added strength, while the PVC anti-static edge trim ensures safe, seamless transitions. With impressive load-bearing capacities and compliance with industry standards, this raised floor solution delivers reliable performance, safety, and electrostatic control for modern, mission-critical environments.


Technical specifications

  • Fire resistance: ASTM E84-14 - Class A
  • Panel core material: high-strength calcium sulphate board
  • Panel top surface: anti-static high-pressure laminate (HPL)
  • Panel bottom surface: galvanized steel
  • Panel edge protection: PVC anti-static edge trim on all four sides
  • Static concentrated load: CISCA, PSA MOB PF2 - 565kg/5.56kN (heavy grade)
  • Ultimate load: 18.36kN
  • Impact load: 68kg
  • Rolling load: 4.45kN at 10 passes; 3.56kN at 10,000 passes
  • Uniform load: 27.78kN/m²
  • Axial load: 22.5kN
  • Dimensions: 600mm x 600mm x 34mm
  • Weight: 59-61kg/m²
  • Meets CISCA, PSA MOB PF2, and ASTM E84-14 standards

Inner Structure



Pedestal and Stringer





*Specifications are subject to change without notice based on technical recommendations and related product enhancements
