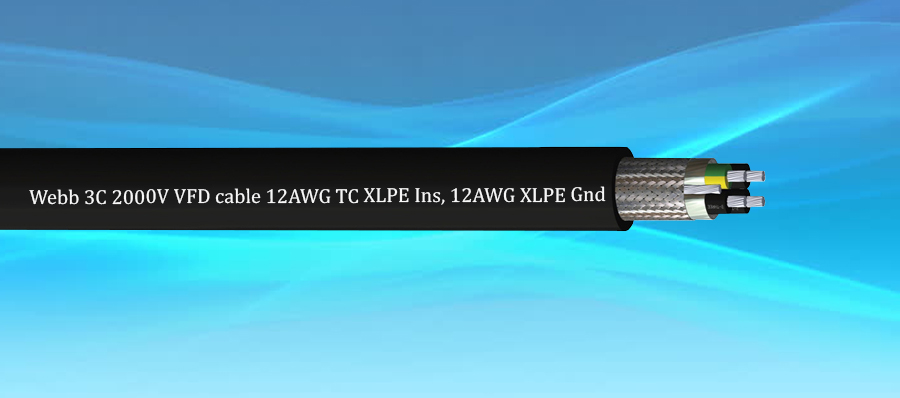

3C 2000V VFD cable 12AWG TC XLPE Ins, 12AWG TC XLPE Ins ground, 12AWG TC Non Ins ground, Overall foil + Braid

VFD cable


Data Sheets

Webb's Variable Frequency Drive (VFD) cable features three 12 AWG conductor made of tinned copper with XLPE insulation, specifically designed for VFD applications. It includes a 12 AWG XLPE-insulated tinned copper ground wire and a 12 AWG uninsulated tinned copper ground wire. Rated for 2000V TC-ER, it operates within a temperature range of 90°C for both dry and wet conditions. The cable incorporates comprehensive shielding with overall aluminum foil and a tinned copper braid to protect against electromagnetic and radio-frequency interference. Its outer sheath ensures durability, safeguarding the cable from physical damage, chemicals, and moisture. Webb's VFD cable is ideal for environments requiring high performance, reliable operation, and protection from electrical interference, such as in industrial automation, motor control systems, and other demanding electrical applications.


Specifications

  • Conductor:
    • No. of conductors: 3
    • Material: Stranded tinned copper
    • Conductor structure: 12AWG (65 strands x 30AWG)
    • Insulation: XLPE - Cross-linked polyethylene, Thickness: 1.7mm
    • Insulation diameter: 5.72mm
    • Insulation color: Black
  • Insulated ground wire:
    • Material: Stranded tinned copper
    • Structure: 12AWG (65 strands x 30AWG)
    • Insulation: XLPE - Cross-linked polyethylene, Thickness: 1.7mm
    • Insulation diameter: 5.72mm
    • Insulation color: Green with yellow strip
  • Non-insulated ground wire:
    • Material: Stranded tinned copper
    • Structure: 12AWG (65 strands x 30AWG)
  • Shielding: Overall aluminum foil + 85% Tinned copper braid
  • Outer sheath: PVC, thickness-1.9mm- Black
  • Ripcord: Yes
  • Bending radius: 220mm
  • Operating temperature: -40°C to +90°C
  • UL Temperature: 90°C Dry, 90°C Wet
  • Max. pull tension: 240kg
  • Cable weight: 500kg/km ±3%
  • Outer diameter: 18.4mm

Electrical characteristics

  • 2000V TC-ER WTTC UL Flexible motor supply cable for industrial, exposed, and wet locations
  • Conductor direct current resistance (DCR): 5.15Ω/km
  • Capacitance from conductor to conductor: 180pF/m
  • Capacitance from conductor to other (ground wire/shield): 320pF/m
  • Characteristic impedance: 44Ω
  • Velocity of propagation: 55%

Standards and compliance

  • Flame retardant: IEC/EN 60332-1-2
  • Flame propagation: IEC 60332-3-24 VDE 0482-332-3-24 EN 60332-3-24
  • Smoke density: IEC 61034-2 VDE 0482-1034-2 EN 61034-2
  • Corrosive gases: IEC 60754-2 VDE 0482-267-2-3 EN 60754-2
  • Voltage rating: AWM I/II A/B
  • UV Resistance: UL 1581 Section 1200

Inner Structure



Ordering information



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
