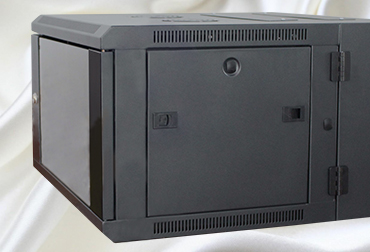

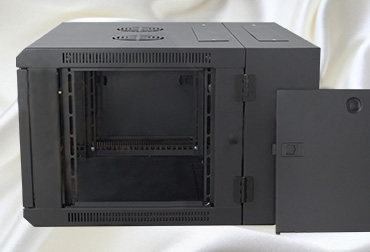

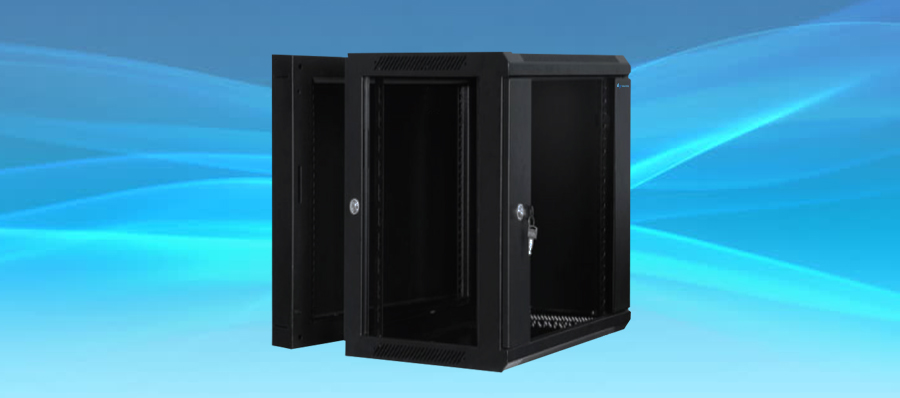

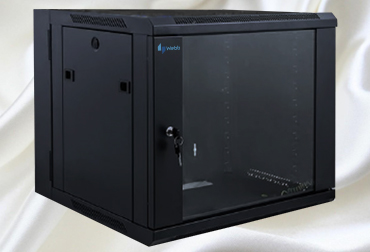

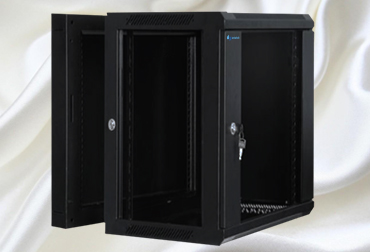

Wall Mount Cabinet Double Section


Wall mounting is an excellent option for space management. These double section cabinets are cost-effective and an ideal option where the space is constrained. We have different models of double section wall mount cabinets to cover a diverse array of project requirements providing safety and accessibility for your network instruments by keeping your place of business/conference/meeting rooms aesthetically appealing.


Wall Mounted Cabinet Double Section Features

  • Front framed glass door with dual section lock
  • Removable side panels with plastic fasteners and lock system with an additional charge
  • Rear 100mm section with lock
  • RU markings on front and rear mounting rails

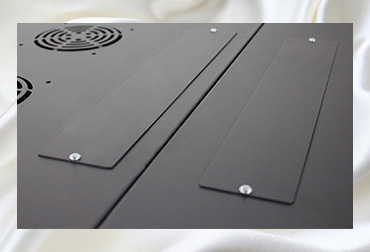

  • Top and bottom cable entries

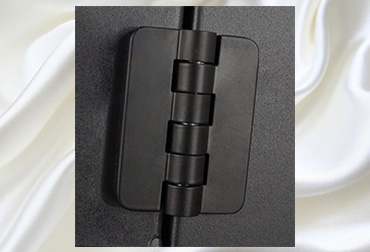

  • Hinge can be installed on either side to switch door opening
  • Earthing bolt
  • Loading capacity: 60KG
  • Materials:SPCC steel
  • Thickness: mounting rails- 1.5mm; sheet metal 1.0-1.2mm
  • Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1,DIN41494; PART7, GB/T3047.2-92.
  • Surface finish: degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity and plastic painting
  • IP degree: IP-20

Components


Wall mount cabinets part number key

Part Number: C.02.W._ _._ _ _ _._._ _._ _._ _ _

C.02.W.Height.WidthDepth.Colour Code.Front Door.Type.Side Panel

Please add the codes from the tables below in the above format to derive at your desired product part number


Cabinet Accessories Part Number Key

To be added after the cabinet part number with a "+". Example: C.02.W.cabinet part number + Accessory code.acccessory code.accessory code(accessory codes to be added as required) Accessory codes to be added as required if accessories to be included in the cabinet



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
