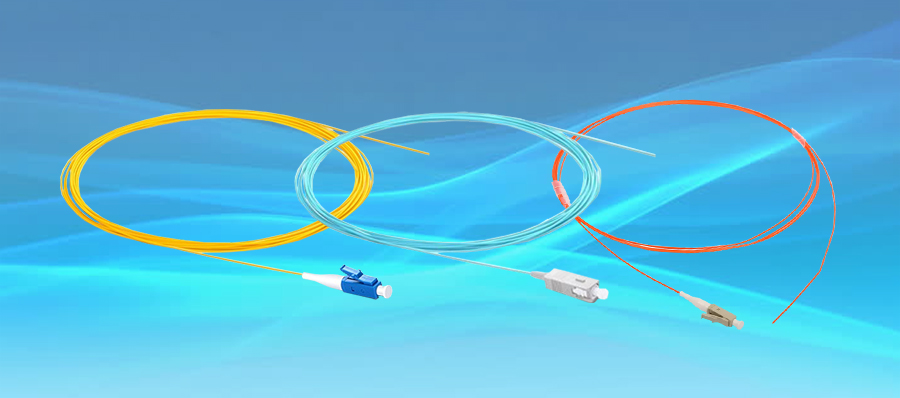

Fibre Optic Pigtails

Fibre Pigtails


Data Sheets


Webb fibre optic pigtails are manufactured from high-quality optical fibre, terminated with standard connectors, providing optimum optical performance. Our range of fibre optic pigtails are designed to ensure reliability and durability and are available in all major connector types.


Features

  • Compact design
  • High reliablity
  • Available in SM & MM
  • Wide wavelength range
  • Large operational temperature range

Applications

  • Local area networks
  • Telecommunication networks
  • CATV/CCTV systems
  • FTTH networks

Technical Specifications

  • Simplex/Duplex assemblies
  • UPC/APC
  • Available in LSZH or PVC sheath
  • Aramid strength member
  • Crush resistance(N/100mm): 500
  • Buffer diameter(um): 6.0N
  • Operating temperature: -20°C to 60°C
  • Available in 0.9mm, 2mm, 2.8mm, 3mm and custom thickness
  • Available in 0.5m, 1m, 1.5m, 2m and custom lengths
  • Available in all standard colors
  • Available in all major connector types

Fibre optic pigtail part number key

Part Number: C.05.PT._._. _._._._._._

C.05.PT.Mode.EndOne.Angle.Type.Color.Thickness.Length

Please add the codes from the tables below in the above format to derive at your desired product part number


*Specifications are subject to change without notice based on technical recommendations and related product enhancements
