Shutter Module

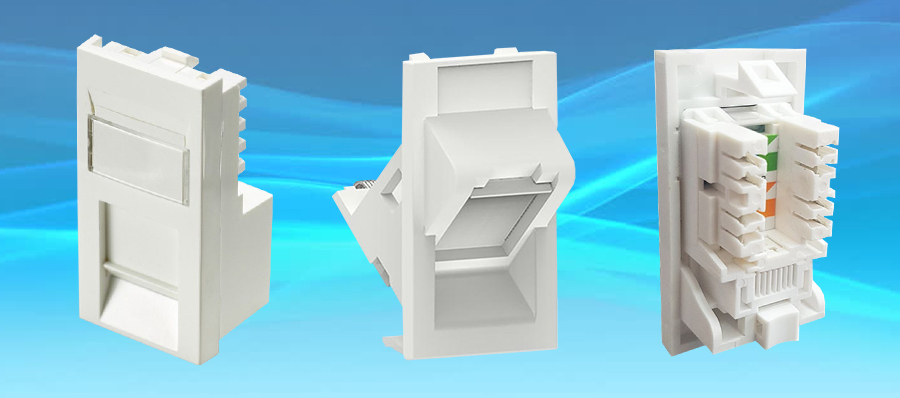

Shutter module


Data Sheets

Webb RJ45 shuttered modules are designed to facilitate connections between all specifications of copper structured cabling solutions. It provides the performance needed for next-generation data communication networks and applications, including gigabit ethernet.


Features

  • In compliance with ANSI/TIA/EIA 568 C.2 standards
  • T568A, T568B industrial standard colour coding
  • Shutter module material: ABS plastic
  • Connectors available in shielded or unshielded types
  • Available in angled or straight types
  • Compatible with 110/LSA IDC connectors
  • Suitable for 23, 24 AWG stranded or solid cables
  • Integrated shutter access to protect from dust ingress
  • Integrated slot above the shutter for further port identification or labelling
  • Available in black or white colours
  • Contact plating: gold plated phosphorus bronze
  • Insertion force: maximum 20N
  • Mating cycles: minimum 750 cycles
  • Operating temperature: -10⁰C to 60⁰C

Shutter module part number key

Part Number: C.04.SM._ _._ _._ ._ _ _

C.04.SM.Cable.Shield.Type.Angle.Colour

Please add the codes from the tables below in the above format to derive at your desired product part number



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
