48 Port 2U 19” LC/APC Rotary Type Fibre Optic Patch Panel

Fibre Optic


Data Sheets

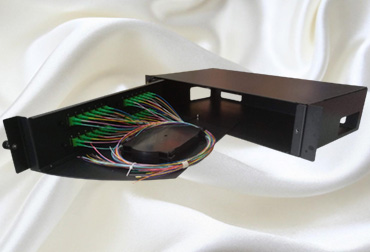

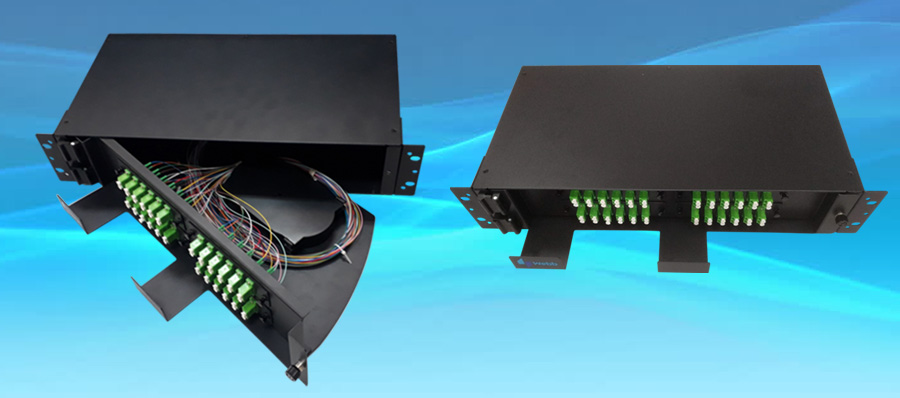

It is manufactured of cold roll steel; splice tray can be rotated outward. Pre-installation of various kinds of fibre optic adapters and pigtails can be done. It is optimal for indoor fibre optic cables connection storage, distribution and management.


Features

  • Standard size 19” rack-mount, 23” optional
  • Material: Cold-roll steel
  • Max capacity: 48 cores with LC adapters

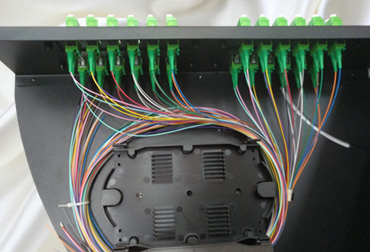

  • Replaceable splice tray (inside)
  • ABS material splice tray: With 2pc splice tray; each splice tray 24 cores
  • Applicable for ribbon and single fibre
  • Diversified panel plate to fit different adapter interface

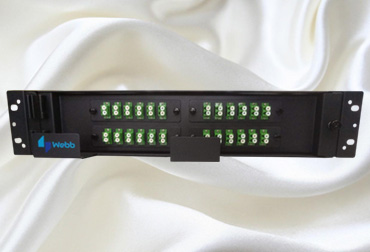

  • Front number mark on the plate is straightforward for identification and operation
  • Dimension(L x D x H) : 482.4 x 284.7 x 88mm
    • *24 Ports 1U patch panel is also available

Technical Drawings


Standard Accessories


Ordering Information



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
