Pull-Out Rack-Mount ODF

Pull-Out Rack-Mount ODF


Data Sheets

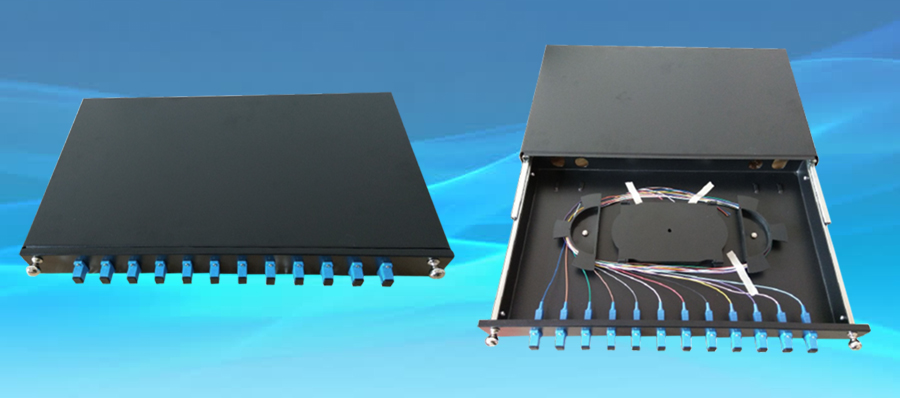

It is constructed of 1U 19” cold-roll steel box, with plastic splice tray along with it, advisable for pigtail, ribbon and bunch cable distribution. Slidable rack mount ODF comes with aluminium sliding rails fitting with self-locking system to restrict the drawer from sliding out when being moved.


Features

  • Definitive size, portable weight and reasonable structure
  • Slide out drawer for effortless cable management
  • FC, SC, ST, LC adapter patch panel privilege, uncomplicated to replace
  • Front access panel pattern for simple operation
  • Convenient for 19’’standard optic distribution cabinets
  • Max. capacity of 96 fibres, one splice trays consists of 12 fibres
  • 4 fibre cable entry ports at rear side
  • Available in white and black color
  • Material: Cold-roll steel

Applications

  • Telecommunications
  • Fibre to the home (FTTH)
  • LAN / WAN
  • CATV

Accessories

  • Rack mounted bracket: 2 pcs
  • Protect splice sleeve 60mm*3.0*1.5 :12 pcs (Qty according to the order)
  • Screw :8 pcs
  • Nut:4 pcs
  • M20 PG grand:1pcs

Technical Drawings

Technical Specifications



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
