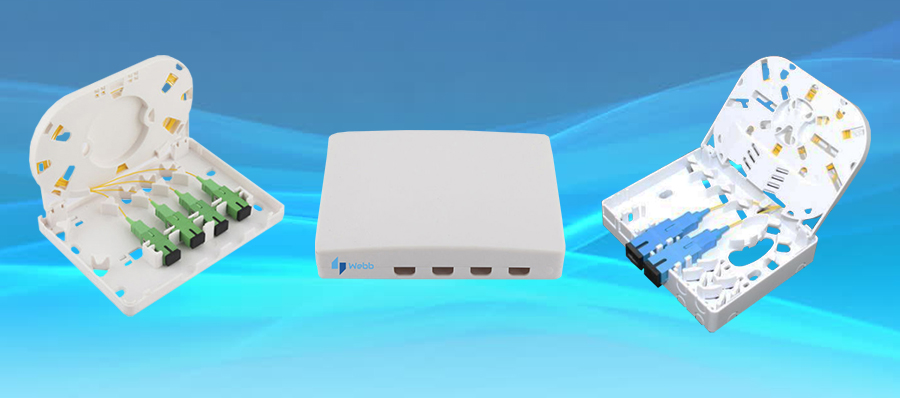

Fibre optic termination box

Fibre optic termination box


Data Sheets

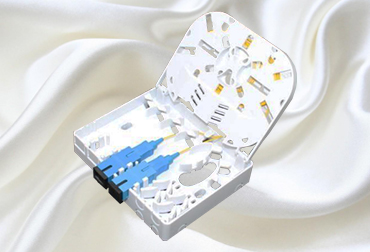

The fibre termination box is a fibre optic management product used to distribute and protect the optical fibre links in an FTTx network. It provides the distribution and terminal connections for various kinds of fibre optic systems in which the optical cables, patch cords, and pigtails are connected.


Specifications

  • Designed for termination, splicing, and storage for fibre optic cable systems
  • Available in 4, 6, 8, 12 core
  • Available in SC simplex, LC duplex, FC adaptor types
  • Fibre capacity:
    • 4 ports: 4SC simplex or 8LC duplex

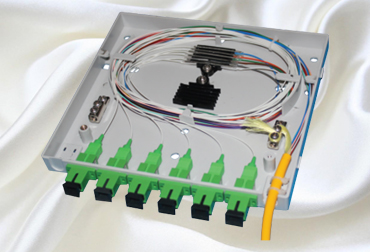

    • 6 ports: 6SC simplex or 12LC duplex
    • 8 ports: 8SC simplex or 16LC duplex

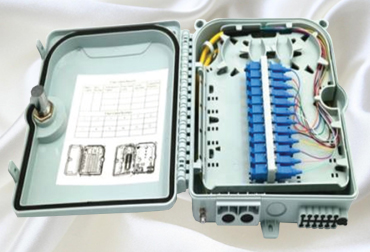

    • 12 ports:12SC simplex or 24LC duplex
  • Material: ABS plastic
  • Compact structure for easy handling
  • Fibre routing with ensured signal integrity
  • Applicable for wall-mounted and flush-mounted outlets
  • Operating temperature: -40 to +80℃
  • Insertion loss: ≤0.2db (1310nm & 1550nm)
  • Protection grade IP45

Opical fibre termination box part number key

Part Number: C.05.TB._._._

C.05.TB.No of ports.Adapter.Type

Please add the codes from the tables below in the above format to derive at your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
