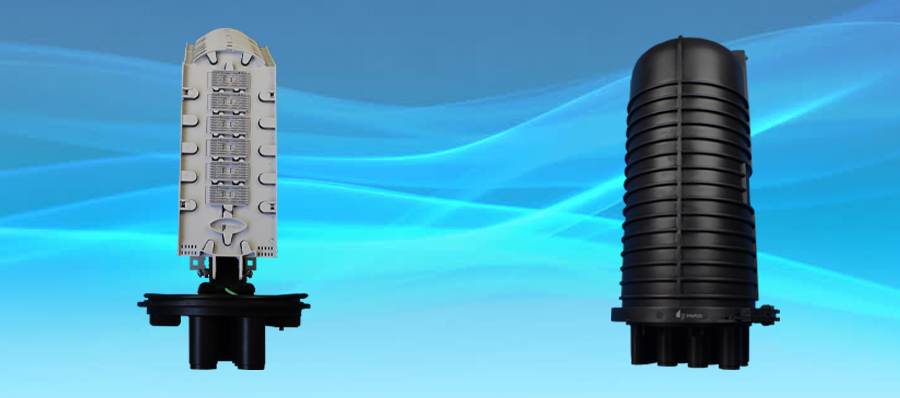

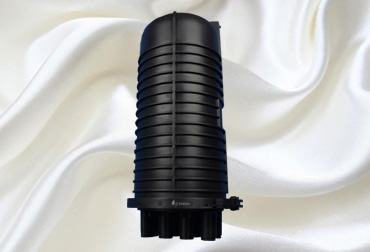

Joint closures are a range of products primarily used for joining cables. Joints in cables are a practical reality with the increase in distances that data needs to be transmitted. The primary function of a fibre optic joint closure is to protect the fibre joints from any physical damage.
Webb joint closures are made of high corrosion resistant polycarbonate material with heavy duty IP 68 delivering synthetic gaskets for total ingress protection. Our production treatments make our units UV resistant and waterproof. Every cable entry has high quality cable sealing plugs to maintain IP 68 ratings.
Features
- Recyclable and suitable for re-entry
- Can be utilized for notched, closed & rigid sheath platforms
- Inclusive of sheath conservation and central strength member fasten feature
- Corrugated closure and light-weight plastic delivers robustness and resistance to chemical and UV degradation
- Requires only base level usage of tools during installation & re-entry
- Inclusive of the entire range of hardware & flash test option is available for closures
- Protection category: IP68
- RoHS compliance
Specifications
Applications
- Underground
- Wall mounting
- Aerial
- Pole mounting
- Vault

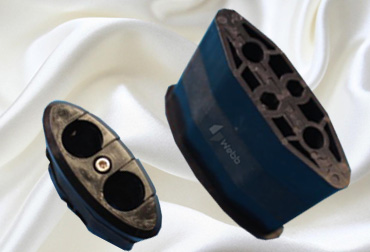

Mechanical sealing kits for oval port
- Oval port closing kits BC6-001-M2-22mm
- Up to 2 cables
- Maximum diameter of cables Ø 22 mm
- Oval port closing kits BC6-001-M2-9mm
- Up to 2 cables
- Maximum diameter of cables Ø 9 mm

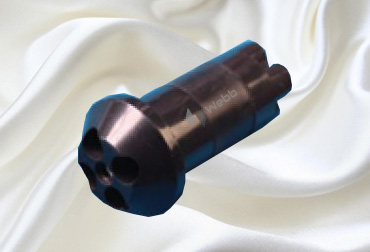

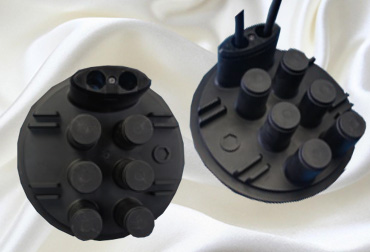

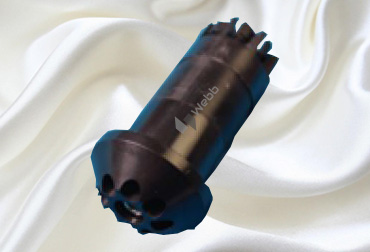

Drop cable sealing kits for round port
- Round port closing kit BC6-002-M4-9mm
- Round port Ø 30 mm
- Up to 4 drop cables
- Maximum diameter of cables Ø 9 mm
- Round port closing kit BC6-002-M8-6mm
- Round port Ø 30 mm
- Up to 8 drop cables
- Maximum diameter of cables Ø 6 mm
- Round port closing kit BC6-002-M6-8mm
- Round Port Ø 34 mm(new base of BC6)
- Up to 6 drop cables
- Maximum diameter of cables Ø 8 mm
Optional Accessories
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
