Fibre Optic Assembly Connectors

Fibre Optic Assembly Connectors

Data Sheets

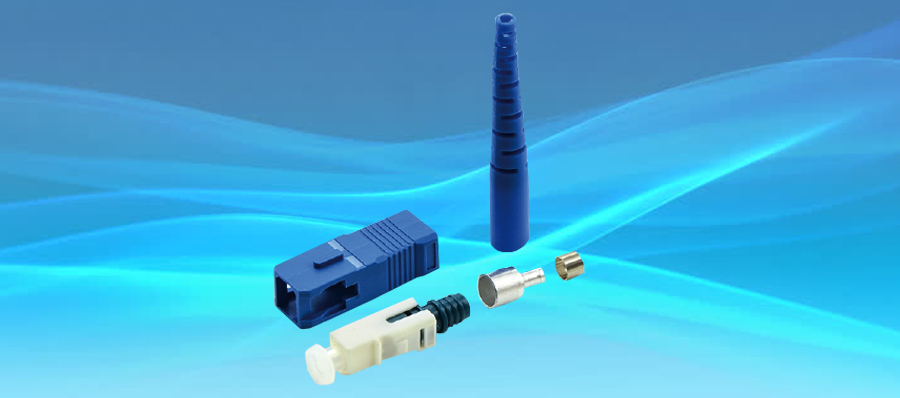

Webb fibre optic connectors are the most efficient way to terminate fibre optic cables where quick connections and disconnections are required. The connectors mechanically couple and align the cores of fibres to ensure that the light emitting through the fibre optic cable is uninterrupted and seamless.


SC Fibre optic connector specifications

  • Available in single-mode and multi-mode
  • Available in simplex or duplex types
  • Available in cable diameter: 2.0mm, 3.0mm, or 0.9mm
  • Available colours: SM/UPC – blue; SM/APC – green; MM/UPC – grey
  • Insertion loss (typical): single-mode (UPC/APC): ≤0.2dB; multi-mode (UPC): ≤0.2dB
  • Insertion loss (Maximum): single-mode (UPC/APC): ≤0.3dB; multi-mode (UPC): ≤0.3dB
  • Return loss: single-mode UPC: ≥50dB, APC: ≥60dB; multi-mode UPC: ≥30dB
  • Operating wavelength: single-mode: 1310nm, 1550nm; multi-mode: 850nm, 1310nm
  • Exchangeability: ≤0.2dB
  • Vibration: ≤0.2dB
  • Durability: >1000 times
  • Operating temperature: -40℃ to +75℃


LC Fibre optic connector specifications

  • Available in single-mode and multi-mode
  • Available in simplex or duplex types
  • Available in cable diameter: 2.0mm, 3.0mm, or 0.9mm
  • Available colours: SM/UPC – blue; SM/APC – green; MM/UPC - grey
  • Insertion loss (typical): single-mode (UPC/APC): ≤0.2dB; multi-mode (UPC): ≤0.2dB
  • Insertion loss (Maximum): single-mode (UPC/APC): ≤0.3dB; multi-mode (UPC): ≤0.3dB
  • Return loss: single-mode UPC: ≥50dB, APC: ≥60dB; multi-mode UPC: ≥30dB
  • Operating wavelength: single-mode: 1310nm, 1550nm; multi-mode: 850nm, 1310nm
  • Exchangeability: ≤0.2dB
  • Vibration: ≤0.2dB
  • Durability: >1000 times
  • Operating temperature: -40℃ to +75℃





FC Fibre optic connector specifications

  • Available in single-mode and multi-mode
  • Available in simplex or duplex types
  • Available in cable diameter: 2.0mm, 3.0mm, or 0.9mm
  • Available colours: SM/UPC – black; SM/APC – green; MM/UPC - black
  • Insertion loss (typical): single-mode (UPC/APC): ≤0.2dB; multi-mode (UPC): ≤0.2dB
  • Insertion loss (Maximum): single-mode (UPC/APC): ≤0.3dB; multi-mode (UPC): ≤0.3dB
  • Return loss: single-mode UPC: ≥50dB, APC: ≥60dB; multi-mode UPC: ≥30dB
  • Operating wavelength: single-mode: 1310nm, 1550nm; multi-mode: 850nm, 1310nm
  • Exchangeability: ≤0.2dB
  • Vibration: ≤0.2dB
  • Durability: >1000 times
  • Operating temperature: -40℃ to +75℃




ST Fibre optic connector specifications

  • Available in single-mode and multi-mode
  • Available in simplex or duplex types
  • Available in cable diameter: 2.0mm, 3.0mm, or 0.9mm
  • Available colours: SM/UPC – black; MM/UPC – yellow
  • Insertion loss (typical): single-mode (UPC): ≤0.2dB; multi-mode (UPC): ≤0.2dB
  • Insertion loss (Maximum): single-mode (UPC): ≤0.3dB; multi-mode (UPC): ≤0.3dB
  • Return loss: single-mode UPC: ≥50dB; multi-mode UPC: ≥30dB
  • Operating wavelength: single-mode: 1310nm, 1550nm; multi-mode: 850nm, 1310nm
  • Exchangeability: ≤0.2dB
  • Vibration: ≤0.2dB
  • Durability: >1000 times
  • Operating temperature: -40℃ to +75℃



Fibre Optic Assembly Connectors Part Number Key

Part Number: C.05.AC._._. _._._._._._

C.05.AC.Mode.Connector.Angle.Type.Cable thickness.Colour

Please add the codes from the tables below in the above format to derive your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
