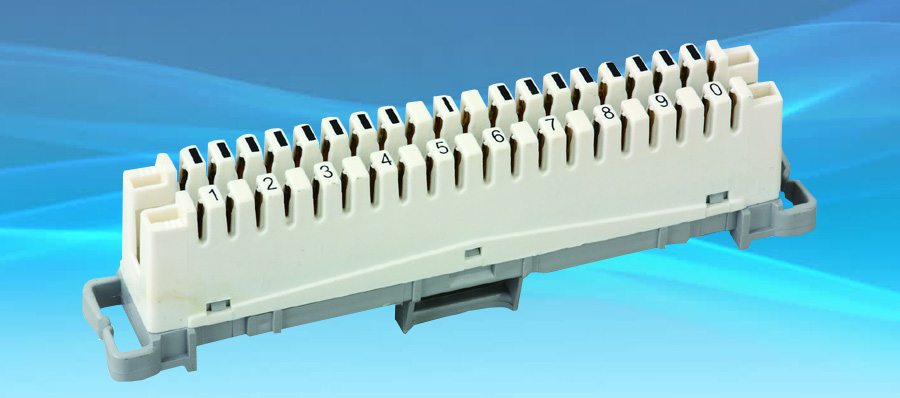

Webb Connection/Disconnection modules are mainly designed for telecommunication and data communication networks and are available in 8 and 10 pair sizes.
Features
- The modules consist of a one-piece contact providing an uninterrupted link between cabling
- Internal diameter of cable: 0.4mm-0.65mm
- Silver-plated 0.5mm Phosphor bronze contacts pin
- Material: PBT-VO UL94 or ABS (plastic )
- 30U silver-plated or client request
- Color: Grey base, Grey body
Ordering Information
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
