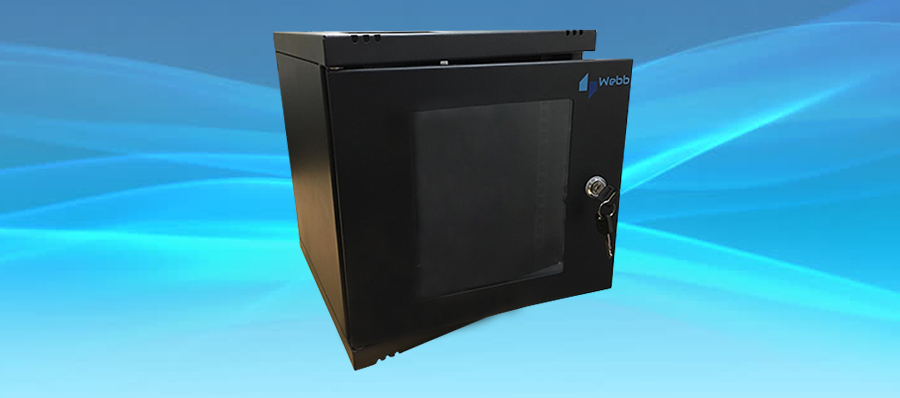

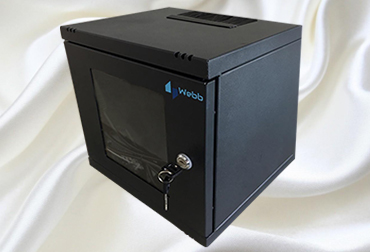

10” Wall Mount SOHO Cabinet


Webb SOHO network series wall mounting cabinets are designed for network distribution, where swift installation is required at an effective cost. While the product displays all-out performance on cabling and networking infrastructure, the cabinet also provides a commercial value with uncompromising level of quality.The manufacturing process is based on top-notch technology and fully-automated.


Each cabinet is delivered as standard with a glass front door, which is lockable with a barrel designed locking unit. 10’’ mount available at different heights. This unit is despatched as a single piece assembled product with 10’’ adjustable equipment mounting rails.


Specification

  • 10” Installation
  • Front window type glass door within a metal frame
  • Solid metal rear panel
  • RU markings on front and rear mounting rails
  • Top and bottom cable entries
  • Load capacity 20 kg
  • Materials: SPCC cold rolled steel
  • Thickness: Mounting profile:1.5mm; others:0.8-1.0mm
  • Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92
  • Surface finish: Degreasing, pickling, phosphating, powder coating
  • IP degree: IP-20

Components


SOHO cabinets part number key

Part Number: C.02.WS._ _._ _ _ _._ ._ _._ _._ _ _

C.02.WS.Height.WidthDepth.Color Code.Front Door.Cabinet Type.Side Panel

Please add the codes from the tables below in the above format to derive at your desired product part number


Cabinet Accessories Part Number Key

To be added after the cabinet part number with a "+". Example: C.02.WS.cabinet part number +Accessory code.acccessory code.accessory code(accessory codes to be added as required)Accessory codes to be added as required if accessories to be included in the cabinet



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
