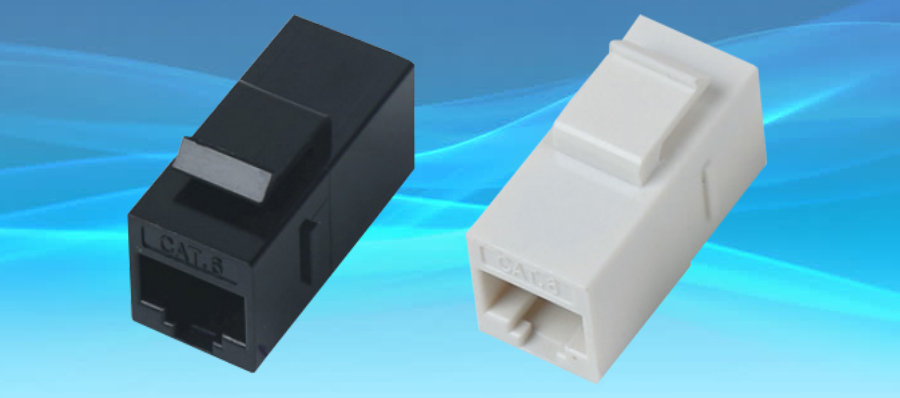

Webb RJ45-RJ45 couplers are high quality, cost-effective, modular and of industrial standards.
Features
- Available in CAT5E, CAT6, CAT6A, CAT7 and CAT7A types
- Contact plating: Gold plated phosphorus bronze
- Available in white or black color
- Available in shielded and unshielded constructions
- Insulation resistance: ≤250M Ohm @100 V DC
- Withstand voltage: DC1000V AC700V RMS 60HZ, IMIN
- Compliance with ANSI/TIA/EIA 568B. 2-10
- Operating temperature: -10⁰C to + 60⁰C
- RJ45 contact life: minimum 750 times
RJ45-RJ45 Coupler part number key
Part Number: C.04.C.RJ45._ _._ _._ _._ _ _._
C.04.C.RJ45.Cable.Shield.Adapter Type.Contacts plating.Color
Please add the codes from the tables below in the above format to derive your desired product part number
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
