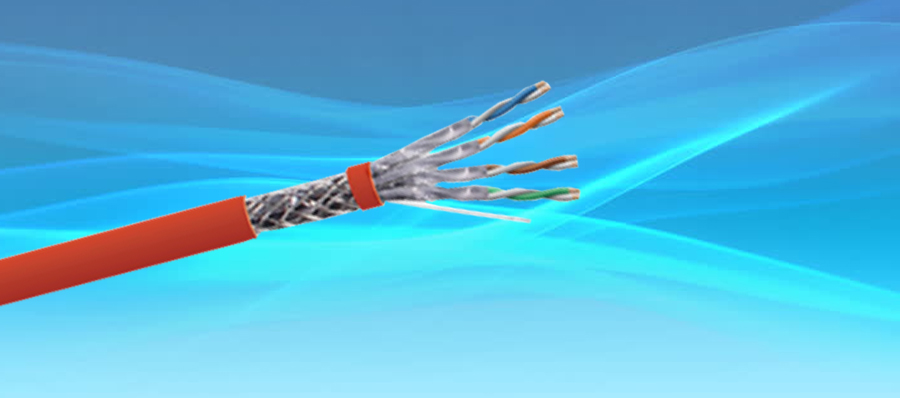

CAT7A S/FTP Cable

CAT7A S/FTP cable


Data Sheets

Related Products


WEBB CAT7A S/FTP cable is 23 or 24 american wire gauge (AWG) ideally used in network and telecommunication applications. CAT7A cables are designed to meet and exceed ANSI/TIA/EIA 568B standards. WEBB cables are simple, cost effective, reliable provides high speed transmission performance.


Features

  • Category: CAT7A S/FTP 4pairs
  • Reference standard: ISO/IEC11801, TIA-568B
  • Conductor: solid-bare copper material
  • Braided with tinned copper or aluminum magnesium alloy
  • Conductor thickness available in 23AWG or 24AWG
  • Outer diameter: 7.90 ±0.5mm
  • Temperature range: -30°C to +75°C
  • Available in LSZH, PVC, PE sheaths
  • Available in all standard colors
  • Surface printing
    • Color: black or white
    • Print error & space: ≤±0.5%/1m
    • Letter height: 3.0 ±0.3mm
  • Core color:
    • A.White/blue
    • B.White/orange
    • C.White/green
    • D.White/brown
  • Packing: drum, dimension according to the requirement
  • Packing length:305 ±1.5m
  • Ripcord:yes
  • Drain wire:Yes
  • Electrical characteristics (20℃):
    • Transmission delay difference: ≤25ns/100m
    • Transmission speed: 74%
    • Unbalanced capacitance to ground: maximum 330pf/100m
    • DC resistance: Maximum 9.5Ω/100m
    • DC resistance unbalance: Max 2%

Inner Structure



LAN Cable Part Number Key

Part Number: C.04.7A._ _._ _._._._ _

C.04.Cable.Indoor/Outdoor.Cable Contruction.Sheath.Color.Thickness

Please add the codes from the tables below in the above format to derive your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
