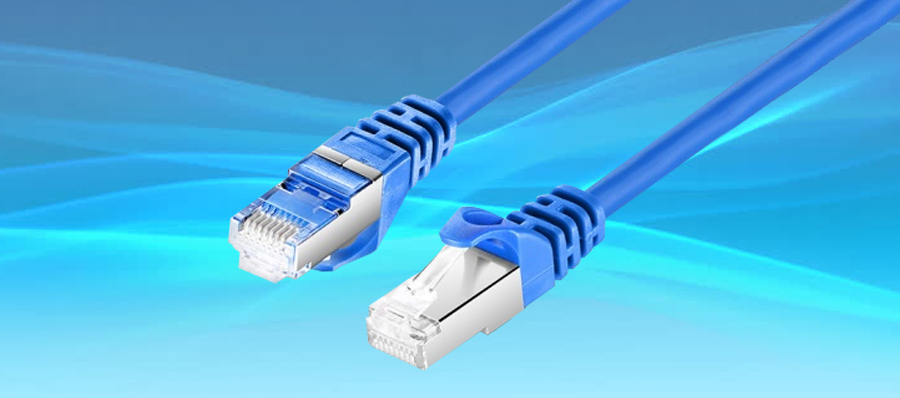

CAT7 SFTP Patch Cord


WEBB CAT7 S/FTP patch cord is engineered for top-notch network performance with its dual-layer shielding,which combines foil and braid shielding to protect against electromagnetic interference (EMI) and crosstalk.This comprehensive shielding ensures clear and reliable signal transmission, supporting data rates up to 10Gbps and frequencies up to 600 MHz. Ideal for high-speed networking needs in offices, data centers, and multimedia environments, the patch cord’s durable and flexible construction provides exceptional performance and reliability for both short and long connections.


Features

  • CAT7 4pair SFTP patch cord
  • Capable of supporting up to 10 Gbps
  • Outer diameter: 6.2 ± 0.3mm
  • Conductor: 26AWG stranded bare copper
  • Insulation: Foamed polyethylene
  • Aluminum foiled shielding
  • Braid: Aluminum magnesium alloy wire (≥40%)
  • Available in LSZH, PVC, PE sheaths
  • Available in all standard colors
  • Available in all standard lengths
  • Equipped with a shielded RJ45 connector featuring 50μ gold plating
  • Operating life: 750 insertion cycle
  • Minimum bending radius:8xD
  • Contact resistance: ≤20mΩ
  • Operating Temperature: -20°C to 60°C

CAT7 Patch Cord Part Number Key

Part Number: C.04.C7.SF._ _._ ._

C.04.Cable.Cable Contruction.Length.Sheath.Color

Please add the codes from the tables below in the above format to derive your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
