CAT7 S/FTP 4 Pairs Internal Cable

CAT7 S/FTP 4 pairs internal cable


Data Sheets

Related Products


CAT7 S/FTP internal cable series consists of 100 Ohm impedance, these cables are used for high bandwidth, high speed applications. 4 pairs cables for horizontal installations in local area network (LANs). The individual and overall screening to meet strict cross talk requirements.


Features

  • Category: CAT7 S/FTP 4Pairs
  • Reference standard: ISO/IEC11801, TIA-568-C.2
  • Conductor:solid-bare copper material
  • Screening material:AL/Mylar
  • Outer screening material:tinned copper 0.10mm with ≥30% coverage
  • Conductor thickness available in 23AWG or 24AWG
  • Available in LSZH, PVC, PE sheaths
  • Available in all standard colors
  • Surface printing
    • Color: black or white
    • Print error & space: ≤±0.5%/1m
    • Letter height: 3.0 ±0.3mm
  • Core color:
    • A.White/blue
    • B.White/orange
    • C.White/green
    • D.White/brown
  • Packing: drum, dimension according to the requirement
  • Cable length: Available in 305m or 500m
  • Ripcord:yes
  • Drain wire:no
  • Electrical characteristics (20℃):
    • 1-100MHz Impedance:100 ±15Ω
    • 100-250MHz Impedance:100 ±18Ω
    • 250-600MHz Impedance:100 ±25Ω
    • 1.0-250.0MHz delay skew (ns/100m) ≤25
    • Velocity of propagation (%) 74
    • Unbalanced-to-ground capacitance (pf/100m) max 330
    • DC Resistance(Ω/100m) max 9.38
    • DC Conductor resistance unbalance(%) max 2.0

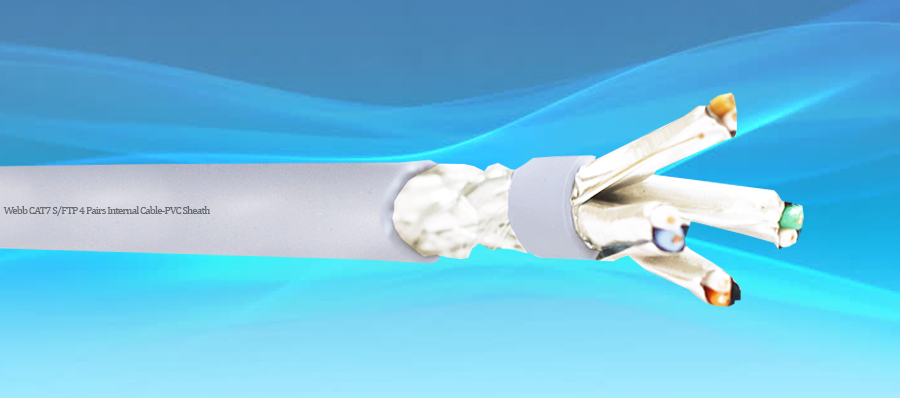

Inner Structure



LAN Cable Part Number Key

Part Number: C.04.C7.ND.SF._._._ _

C.04.Cable.Indoor/Outdoor.Cable Contruction.Sheath.Color.Thickness

Please add the codes from the tables below in the above format to derive your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
