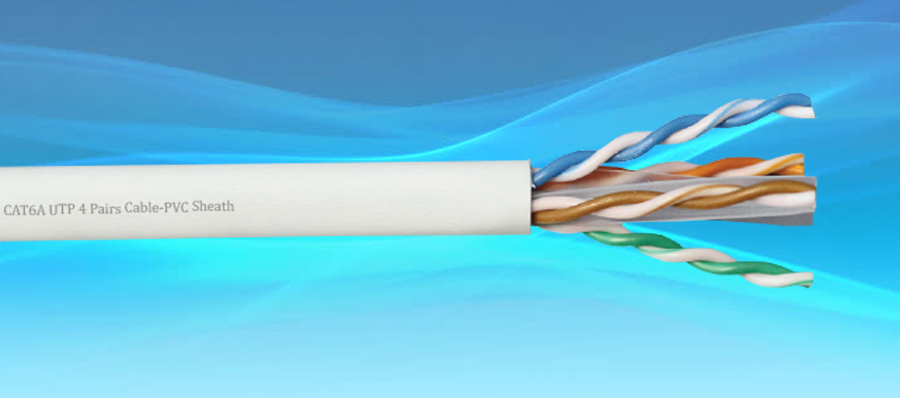

WEBB CAT6A unscreened UTP cable is 23 or 24 American wire gauge (AWG) ideally used for network and telecommunication
applications. WEBB cables are cost effective, reliable provides high speed transmission performance.
Features
- Category:CAT6A U/UTP 4Pairs
- Reference standard: ISO/IEC11801, TIA-568-C.2
- Conductor:solid-bare copper material
- Conductor thickness available in 23AWG or 24AWG
- Available in LSZH, PVC, PE sheaths
- Available in all standard colors
- Surface printing
- Color: black or white
- Print error & space: ≤±0.5%/1m
- Letter height: 3.0 ±0.3mm
- Core color:
- A.White-blue/blue
- B.White-orange/orange
- C.White-green/green
- D.White- brown/brown
- Packing: wooden tray & carton, dimension according to the requirement
- Packing length:305±1.5m
- Ripcord:yes
- Drain wire:no
- Electrical characteristics (20℃):
- 1.0-250.0MHz Impedance(Ω) 100 ±15
- 250.0-500.0MHz impedance (Ω) 100 ±22
- 1.0-250.0MHz Delay skew (ns/100m) ≤45
- DC Resistance(Ω/100m) max 9.38
- DC Conductor resistance unbalance(%) max 5.0
- Nominal velocity of propagation: 69%
Inner Structure
LAN Cable Part Number Key
Part Number: C.04.CA._ _._ _._._._ _
C.04.Cable.Indoor/Outdoor.Cable Contruction.Sheath.Color.Thickness
Please add the codes from the tables below in the above format to derive your desired product part number
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
