WEBB CAT6A F/FTP cable is 23 or 24 American wire gauge (AWG) ideally used for network and telecommunication applications.
WEBB cables are cost effective, reliable provides high speed transmission performance.
Features
- Category: CAT6A F/FTP 4Pair
- Reference standard: ISO/IEC11801, TIA-568-C.2
- Conductor:solid-bare copper material
- Screening material:AL/Mylar
- Conductor thickness available in 23AWG or 24AWG
- Available in LSZH, PVC, PE sheaths
- Available in all standard colors
- Surface printing
- Color: black or white
- Print error & space: ≤±0.5%/1m
- Letter height: 3.0 ±0.3mm
- Core color:
- A.White/blue
- B.White/orange
- C.White/green
- D.White/brown
- Packing: wooden tray, dimension according to the requirement
- Packing length:305±1.5m
- Ripcord:yes
- Drain wire:yes
- Electrical characteristics (20℃):
- 1.0-250.0MHz Impedance(Ω) 100 ±15
- 250.0-500.0MHz impedance (Ω) 100 ±22
- 1.0-250.0MHz delay skew (ns/100m) ≤45
- Unbalanced-to-ground capacitance (pf/100m) max 330
- DC Resistance(Ω/100m) max 9.38
- DC Conductor resistance unbalance(%) max 5.0

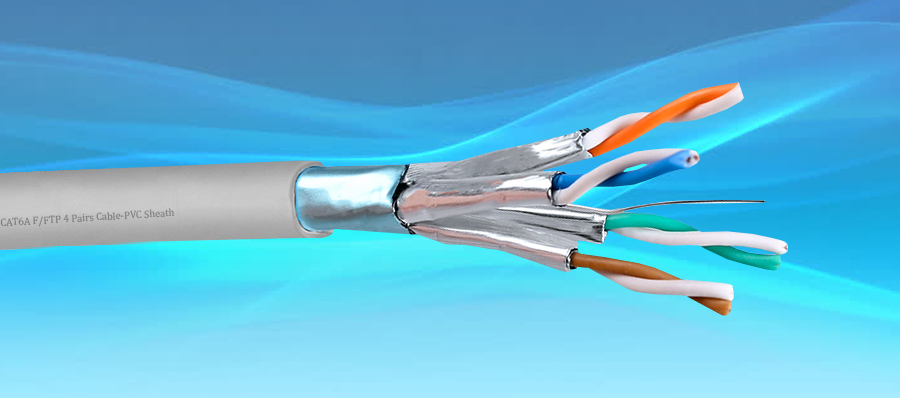

Inner Structure
LAN Cable Part Number Key
Part Number: C.04.CA._ _._ _._._._ _
C.04.Cable.Indoor/Outdoor.Cable Contruction.Sheath.Color.Thickness
Please add the codes from the tables below in the above format to derive your desired product part number
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
