CAT6 Shielded Termination Plug

Field Termination Plug


Data Sheets

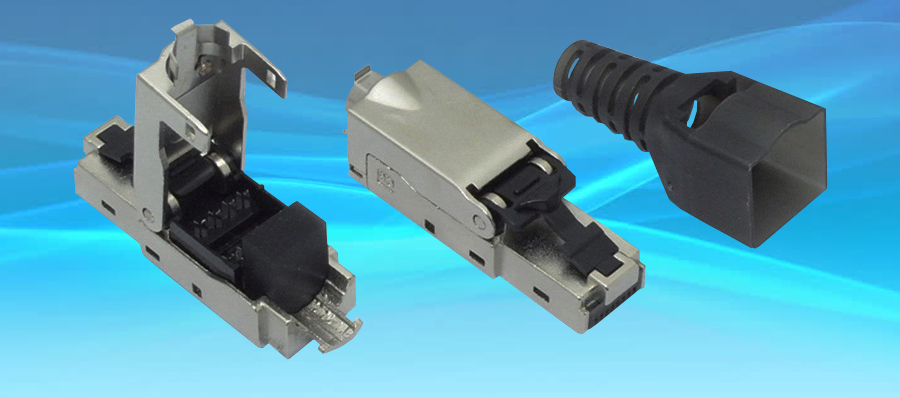

Webb CAT6 shielded field termination plug is designed to terminate cables that operate in high-bandwidth gigabit networks. Its shielding eliminates electromagnetic noise. It is a tool-free plug with an open-hinged design that simplifies cable termination.


Features

  • CAT6 Shielded
  • Plug body material: zinc alloy
  • Contact plating: phosphor bronze, finished with 6μ to 50μ gold plating
  • Applicable with stranded AWG 22-27 and solid AWG 22-26 wire sizes
  • Maximum conductor insulation diameter: 1.65mm
  • Mating cycles: minimum 750
  • Current rating: 1.5A
  • Dielectric withstanding voltage: 1000V DC
  • Insulation resistance: minimum 500MΩ
  • Contact resistance: maximum 20MΩ

Technical drawings


Field Termination Plug Part Number Key

Part Number: C.04.TP._ _._ _._ ._ _ _._

C.04.TP.Cable.Shield.Contacts plating.Colour

Please add the codes from the tables below in the above format to derive your desired product part number


*Specifications are subject to change without notice based on technical recommendations and related product enhancements
