CAT6 SF/UTP 4 Pairs Cable

CAT6 SF/UTP 4 Pairs Cable


Data Sheets

Related Products


Cat6 SF/UTP 4 pair CM 23AWG or 24 AWG solid cable has increased performance on transmission of high special data, digital and analogue voice and video (RGB) signals on LANs. It also supports gigabit ethernet (1000 base T) standard. Operating at a bandwidth of 250MHz. Tinned copper screening gives protection against EMI and avoid signal loss.


Features

  • Category:CAT6 SF/UTP 4Pairs
  • Reference standard: ISO/IEC11801, TIA-568-C.2
  • Conductor: solid-bare copper material
  • Conductor thickness available in 23AWG or 24AWG
  • Available in LSZH, PVC, PE sheaths
  • Available in all standard colors
  • Screening material: Mylar+ AL/Mylar
  • Outer screening material: Tinned copper 0.10 mm with ≥40% coverage
  • Surface printing
    • Color: black or white
    • Print error & space: ≤±0.5%/1m
    • Letter height: 3.0 ±0.3mm
  • Core color:
    • A.White-blue/blue
    • B.White-orange/orange
    • C.White-green/green
    • D.White- brown/brown
  • Packing: wooden tray & carton, dimension according to the requirement
  • Packing length:305±1.5m
  • Ripcord:yes
  • Drain wire:no
  • Electrical characteristics (20℃):
    • 1.0-250.0MHz Impedance(Ω) 100±15
    • 1.0-250.0MHz Delay skew (ns/100m) ≤45
    • Unbalanced-to-ground capacitance (pf/100m) max 330
    • DC Resistance(Ω/100m) max 9.38
    • DC Conductor resistance unbalance(%) max 5.0

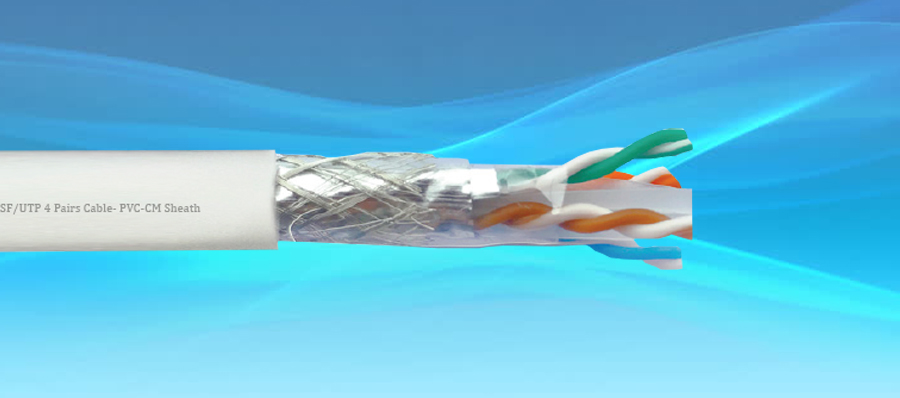

Inner Structure



LAN Cable Part Number Key

Part Number: C.04.C6._ _._ _._._._ _

C.04.Cable.Indoor/Outdoor.Cable Contruction.Sheath.Color.Thickness

Please add the codes from the tables below in the above format to derive your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
