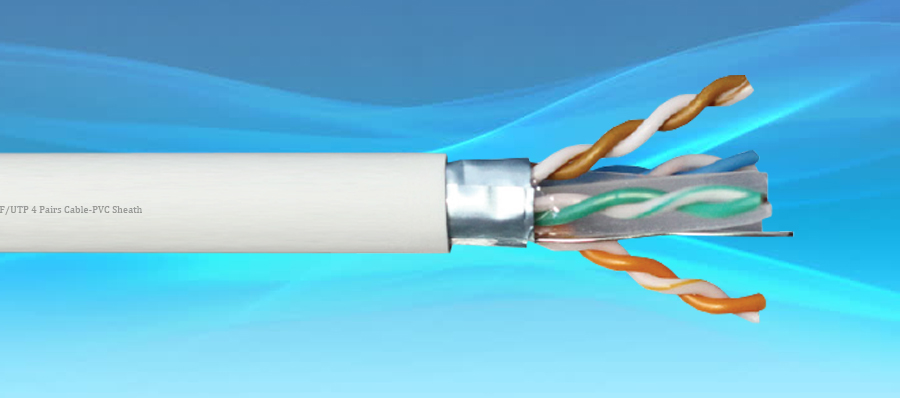

CAT6 F/UTP 4 Pairs Cable

CAT6 F/UTP 4 Pairs Cable


Data Sheets

Related Products


WEBB CAT6 F/UTP cable is 23 or 24 american wire gauge (AWG) ideally used network and telecommunication applications. CAT6 cables are designed to meet and exceed ISO/IEC11801, TIA-568-C.2 standards. WEBB cables are simple, cost effective, reliable provides high speed transmission performance.


Features

  • Category: CAT6 F/UTP 4Pairs
  • Reference standard: ISO/IEC11801, TIA-568-C.2
  • Conductor: solid-bare copper material
  • Conductor thickness available in 23AWG or 24AWG
  • Available in LSZH, PVC, PE sheaths
  • Available in all standard colors
  • Screening material: Mylar+ AL/Mylar
  • Surface printing
    • Color: black or white
    • Print error & space: ≤±0.5%/1m
    • Letter height: 3.0 ±0.3mm
  • Core color:
    • A.White-blue/blue
    • B.White-orange/orange
    • C.White-green/green
    • D.White- brown/brown
  • Packing: wooden tray & carton, dimension according to the requirement
  • Packing length:305±1.5m
  • Ripcord:yes
  • Drain wire:yes
  • Electrical characteristics (20℃):
    • 1.0-250.0MHz Impedance(Ω) 100±15
    • 1.0-250.0MHz Delay Skew (ns/100m) ≤45
    • Unbalanced-to-ground capacitance (pf/100m) max 330
    • DC Resistance(Ω/100m) max 9.38
    • DC Conductor Resistance unbalance(%) max 5.0

Inner Structure



LAN Cable Part Number Key

Part Number: C.04.C6._ _._ _._._._ _

C.04.Cable.Indoor/Outdoor.Cable Contruction.Sheath.Color.Thickness

Please add the codes from the tables below in the above format to derive at your desired product part number

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
