50 Pair Connection Box

50 pair connection boxes


Data Sheets

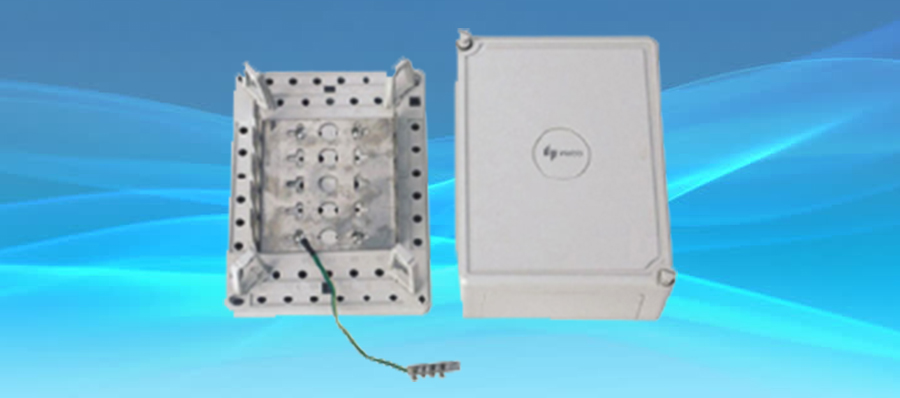

It is a wall mounted 50 Pair voice connection box constructed in mid grey incombustible PVC. Produced with a 5-way back mount frame which will accept 5 off 10pair LSA connection or disconnection modules. Its principal use is to build connection for CW1297/1308 voice cabling.


Features

  • Dust-tight box is applicable for indoor wire distribution
  • Material: ABS plastic
  • Mount frame: 1mm thickness stainless steel
  • The box is provided with lock accessible with a screw driver
  • Cable access is through side panel tear out features
  • Internal cable management through 4 off 37B jumper rings
  • The earth bar assembly contribute a common earthing point
  • Side and end panels are detachable to allow side by side mounting
  • Captive quarter turn locking posts assure that the lid can be easily removed and locked
  • A detachable button in the centre of the lid grants room for customized logos
  • Dimension(h x w x d): 258 x 107 x 90mm

Ordering Information



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
