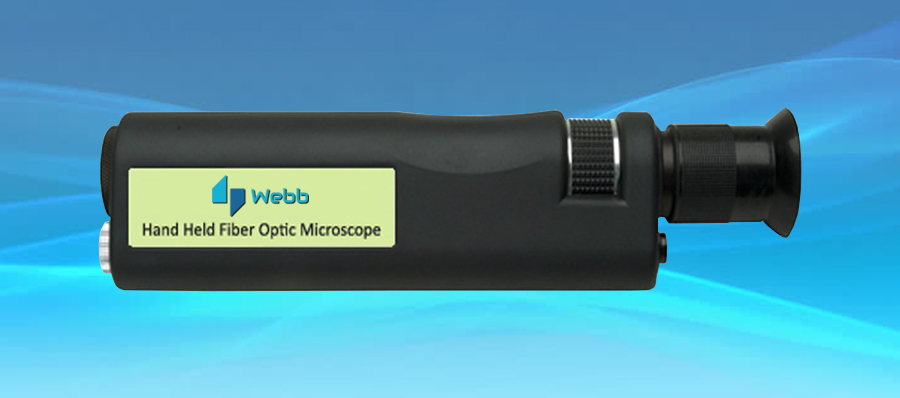

400X Fibre Microscope

400X Fibre Microscope


Data Sheets


The fibre optic microscope exert a white LED light for coaxial illumination. When the light is introduced into the optical path so that it emerges through the tip of the objective lens and hits the ferrule perpendicular to the end face. This course of illumination produces a high-level resolution ensuring excellent specificity of the scratches and contamination.


Features

  • Optical magnification: 400X
  • LED rated life: 10000hrs
  • Weight: 0.6kg
  • Size: 225mm/8.76" lengthx32mm/1.25"diameter
  • Laser safety filter: built-in
  • Light source: 3xAAA batteries (Batteries not included)
  • Controls: momentary on/off switch for light source and fine force control wheel
  • Adaptor interface: interchangeable for 2.5mm (SC, ST, FC) and 1.25mm (LC/MU) adaptor (Adaptors 1.25mm+2.5mm included)
  • Anti-slip rubber grip

Operations Manual

  • Step1:Insert fibre connector into the adaptor of microscope
  • Step2: Look through the eyepiece and press on/off LED switch (Illumination)
  • Step3: Adjust the focus control, to capture a clear view

Ordering Information



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
