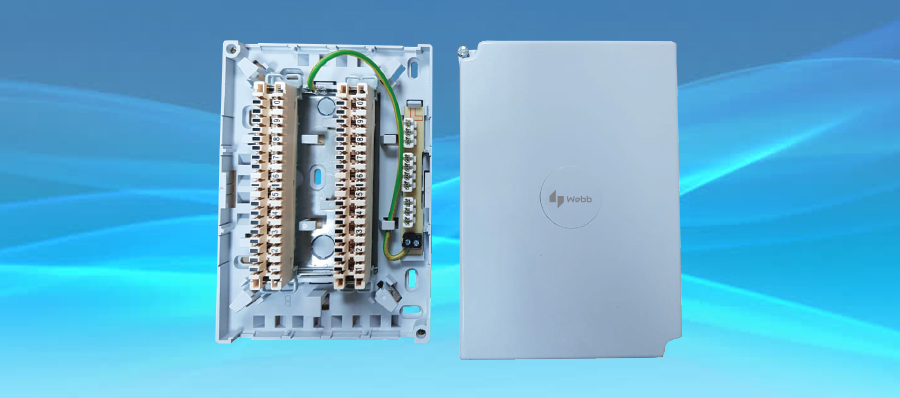

It is a wall mounted 20 pair voice connection box constructed in Mid Grey incombustible PVC, supplied with 2 off 10 pair LSA connection or disconnection modules and Its principal use is to build connection for CW1297/1308 voice cabling.
Features
- Attainable with two 10 pair LSA connection or disconnection modules
- Dust-tight box is applicable for indoor wire distribution
- Material: ABS plastic
- Mount frame: 1mm thickness stainless steel
- Cable access is through lid knockout features
- Two screws secure the lid to keep it firmly in place
- Internal cable management features incorporating integral jumper rings and a 10-way earth bar
- A detachable button in the center of the lid grants room for customized logos
- Mark up field to underside of lid for labelling and tag
- Optional deep lid version allows for fitment of protector mount 5B, providing over voltage protection using arrestors
- Flat lid logo dimension (h x w x d): 170 x 120 x 35mm, Deep lid logo dimension (h x w x d): 170 x 120 x 54
Ordering Information
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
