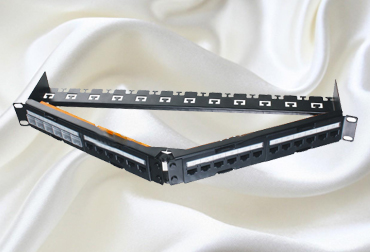

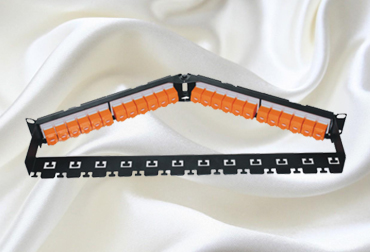

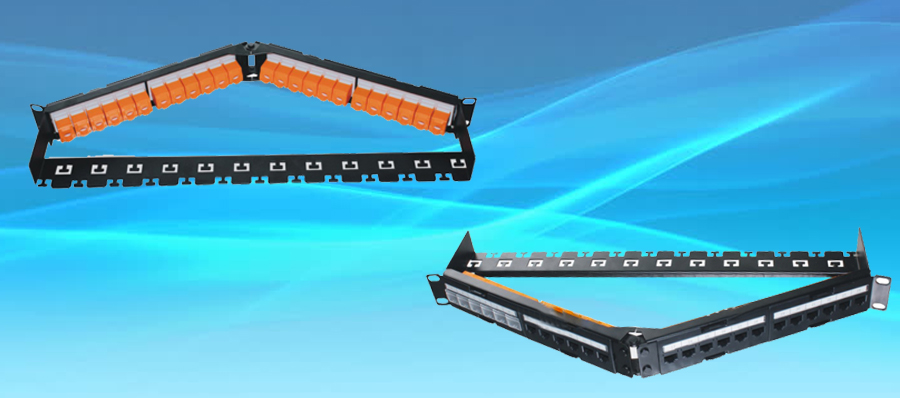

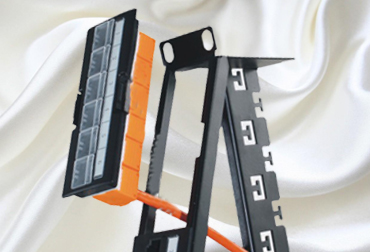

Termination in 45 degree angled 19" 1U CAT6A UTP patch panel with 24 ports is tool-less (CAT6A UTP keystone & slender design).
Features
- 45 degree angled 19'' 1U Cat6A UTP patch panel with 24 ports
- Meets/exceeds the existing T568A and T568B standards
- Termination: Tool-less category (CAT6A UTP keystone & slender design)
Specifications
- Designed for 22-26 AWG solid conductors
- Punching duration: ≥ 250 times
- IDC contact material: phosphor bronze with tin-coating over nickel
- Contact material: phosphor bronze with gold-coating over nickel
- Panel frame: black or ivory electro static powder-coated steel
- Housing material: ABS or PC; UL94-V0 or UL94-V2
- Packing: 20PCS/CTN 53*26.5*51CM
Electrical Characteristics
- Insulation: 500 mohm
- Dielectric voltage resistance: 1000 V AC RMS, 60Hz/1minute
Product Description
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
