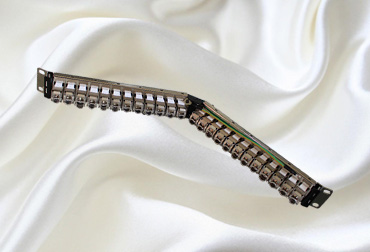

1U CAT6 24 Ports FTP Angled Patch Panel

It is commonly used in a local area network (LAN) as a mounted hardware assembly that contains ports to connect and manage incoming and outgoing ethernet cables. 24 ports FTP angled patch panel is designed for 22-26 AWG solid conductors, rear metal cabling organiser with Y/G earthing cable with PCB-FR-4 1.60 mm (0.06) two impenetrable layers.

Features

FTP 1U CAT6 24 ports angled patch panel
19" mountable
Designed for 22-26 AWG solid conductors

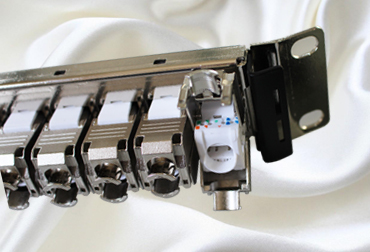

Rear metal cabling organiser with Y/G earthing cable
Stainless-steel mounting lobe

Specifications

IDC-PC UL94V-0
PCB-FR-4 1.60 mm (0.06") two impenetrable layers
Housing: ABS 94V-0
Contacts: 0.35 mm (0.014") phosphor bronze with 1.27-micron (50 micro inches) gold coating on contact area
Metal housing: 1.50 mm dense metal
Color pattern of conductors according to T568B & T568A

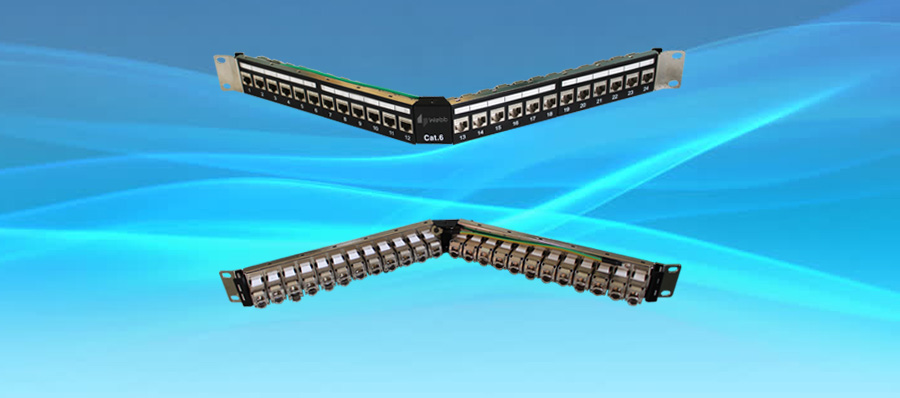

Numerical display of ports on the front side of the panel with supplementary space for assigning numbers
Color and numerical display of IDC modules at the panel rear
