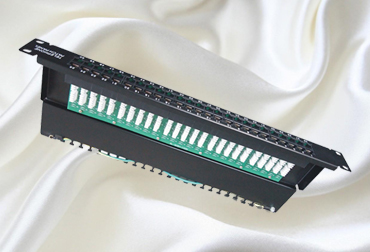

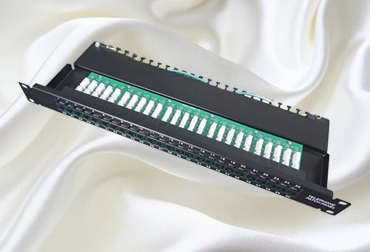

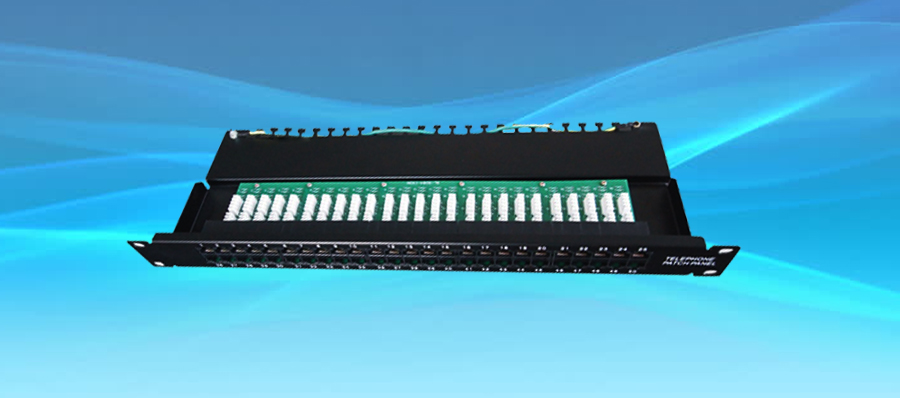

UTP Voice (CAT3) patch panels are 19inch rack mountable IDC/PCB moulded jack patch panels. All panels comply with the EIA/TIA standard for category 3 and are available in 50 port density.
Features
- CAT3 data and voice patch panel with 50 ports
- Angle: 90 degree
- Termination: LSA IDC
- Adherence to the requirements of:
- TIA/EIA-568-A and TIA/EIA-568-B category 3
- TIA/EIA TSB-40
- Standard 11801 ISO/IEC generic cabling
- Standard EN50173 CENELEC generic cabling
Specifications
- Patch panel rear is attached with cable managers for suitable cable management
- High resistance capability
- PCB - FR-4 1.60 mm (0.06") two impenetrable layers
- Contacts: 0.45 mm (0.018") phosphor bronze with 3U to 50U diameter gold coating on contact area
- Housing: ABS or PC
- IDC - PC UL94V-0

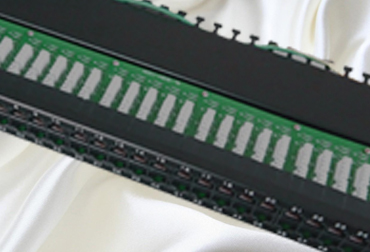

- Color and numerical display of IDC modules at the panel rear
- Designed for 22-26 AWG compact conductors
Electrical Characteristics
- Current rating: 1.5 A maximum
- Voltage ranking: 150 V
- Contact resistance: 20 mohm
- Insulation: 500 mohm
- Dielectric voltage resistance: 1000 V AC RMS, 60Hz/1minute
Product Description
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
