19” DIN Rail Mounting Frame

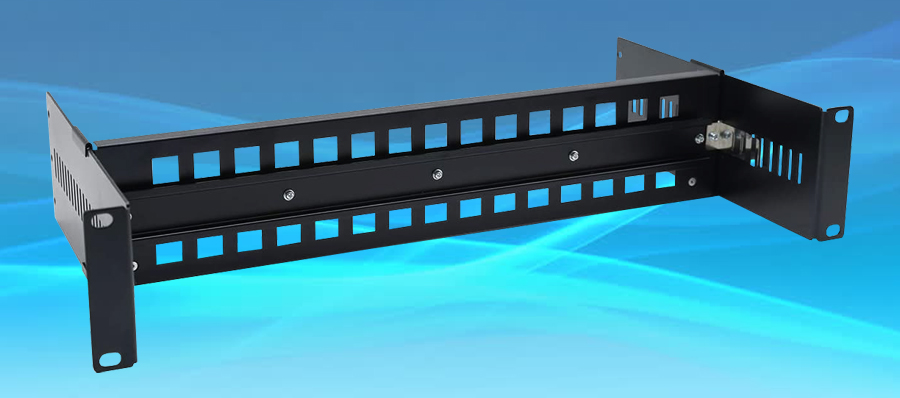

DIN Rail mounting frame


Data Sheets

Related Products


Webb 19” DIN-Rail mount frames are used for the installation and termination of various DIN-Rail products in a network environment. The 19" rack mount adjustable DIN-rail rack mount frame is installed in a standard 19” rack cabinet to allow DIN-Rail mounted equipment to be rack-mounted.
DIN-rail media converters, DIN-rail industrial PoE switch, DIN-rail power supplies, modems, etc are suitable for this rack mount frame.


Technical specifications

  • 19” mountable
  • Standard 35mm DIN-Rail track included
  • User-friendly design
  • Maximum load capacity(2U): 8kg
  • Adjustable depth to fit devices from 2.5cm to 20.5cm
  • Material: Available in aluminium alloy or cold-rolled steel
  • Colour: Available in black, grey, or silver
  • Dimensions (2U): 482.6mm x 92.2mm x 250mm (W x H x D)

Technical Drawings(2U)


19” DIN rail mounting frame part number key

Part Number: C.02.DIN-MF._ _._._._._

C.02.DIN-MF.Material.Height.Depth.Colour

Please add the codes from the tables below in the above format to derive at your desired product part number

* Minimum order quantities may be applicable for non stock items

*Specifications are subject to change without notice based on technical recommendations and related product enhancements
