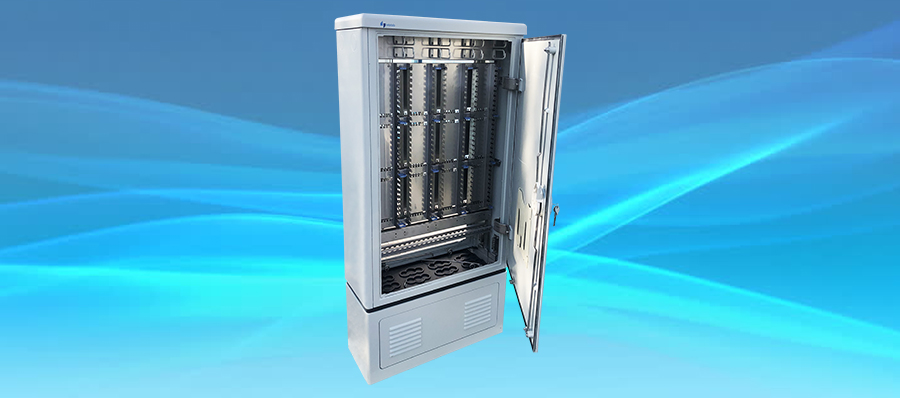

1200 Pair Outdoor Distribution Cabinet

• Suitable for outdoor environments
• In compliance with TIA/EIA568A/B, CE, RoHS, and ISO standards
• Material of the body: galvanized steel
• Material of the brackets: stainless steel
• Integrated with a single front door
• Inclusive of 4 (30+1) back mounting frames
• Inclusive of horizontal mounting rail for fixing back mounting frames
• Inclusive of door arrestor to secure the door
• Inclusive of two horizontal jumper bars (top and bottom), over four bays for cable guiding
• Cabinet integrated with locking system for security
• Inclusive of document holder attached on the inside of the door
• Inclusive of 24pcs jumper guides for attaching to rack mounting frames
• Inclusive of earthing kit:
  • 8 cables 300 mm
  • 4 cables 520 mm
  • 12 cable sheath contacting screws
• Inclusive of concrete-plinth fixing kit
• Inclusive of a packet of sealing putty for securing cable entry ports
• Inclusive of backing plates to facilitate C-clamps
• Inclusive of C-clamps for securing the entry and exits of cables above the base plate
• Inclusive of 4pcs additional left guide hooks for cable management
• Inclusive of 4pcs additional right guide hooks for cable management
• Inclusive of fixing materials, for T-cutout back mount frames
• Operating temperature: -40°C to +80°C
• Cabinet dimensions: 1450 x 750 x 320 (H x W x D)
• Available in (RAL 7035) grey colour

Please add the codes from the tables below in the above format to derive at your desired product part number
