Features
- Designed in accordance with IP66 framework
- Material: CRCA steel
- Dust-proof & water-proof to grime, oils and corrosive substances
- Yellow/green earthing cable for front door
- Maximum static loading: 30 KG
Specifications
- Dimensions: 400mmx300mmx200mm

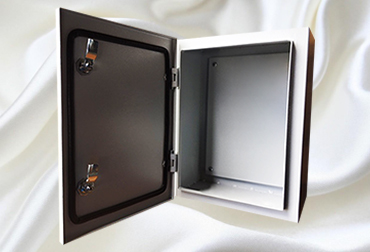

- 1.6mm frame with 2mm thick mounting plate
- Mounting plate dimensions: 350H*250W
- Surface preparation: degrease, acid pickling, rust deterrence and parkerizing, pure water cleaning, static electricity with plastic painting
- Powder coating: 7 tank pre-treated with hybrid epoxy
- Comply with the standards of ANSI/EIA, RS-310-D; IEC297-2; DIN41491:PART1; DIN41494:PART7; GB/T3047.2-92 and ETSI standards
- IP degree: 66
- Frame color: RAL7035 - grey
- Packing: 5 ply box
Components
Operational Environments
- Office,home,telecom room,etc
- Must be protected against: Mechanical impairment, Inappropriate treatment, Any divergent usage than what the cabinet is designed for
- Inappropriate treatment:
- Overcapacity (exceeding the maximum recommended load)
- Device installation that can undesirably influence the functionalities of the cabinet or the installed equipment
- Modification of the structure or design of the cabinet
Installation of the cabinet
- To guarantee the maximum recommended load, it is essential to dispense the load equally
- To circumvent dust & liquid penetration at the cable entries, it may be sealed appropriately with the cable glands
Environmental Protection
- All parts are made of biodegradable materials and after decommissioning the cabinet, it must be discarded according to the appropriate local regulations
Technical Drawings
Ordering Information
*Specifications are subject to change without notice based on technical recommendations and related product enhancements
